W-CASE
Case made of wood. Natural materials.

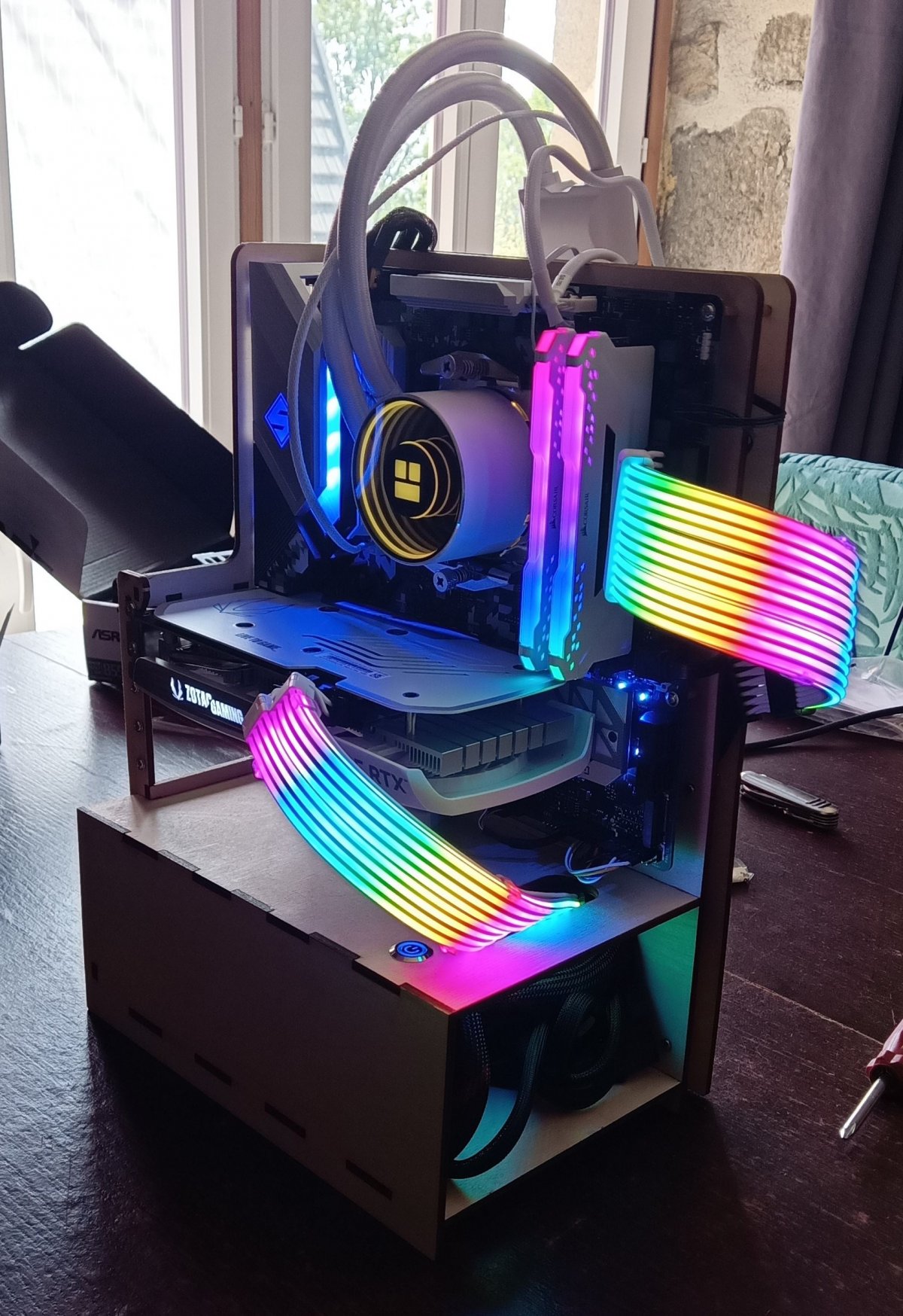

W-CASE 1
Same design as M-CASE 1- Future design
- Natural materials
- Work in Vertical or Horizontal
W-CASE 1 mATX
mini version of W-CASE 1- Natural materials
- Work in Vertical or Horizontal
- Cooler support

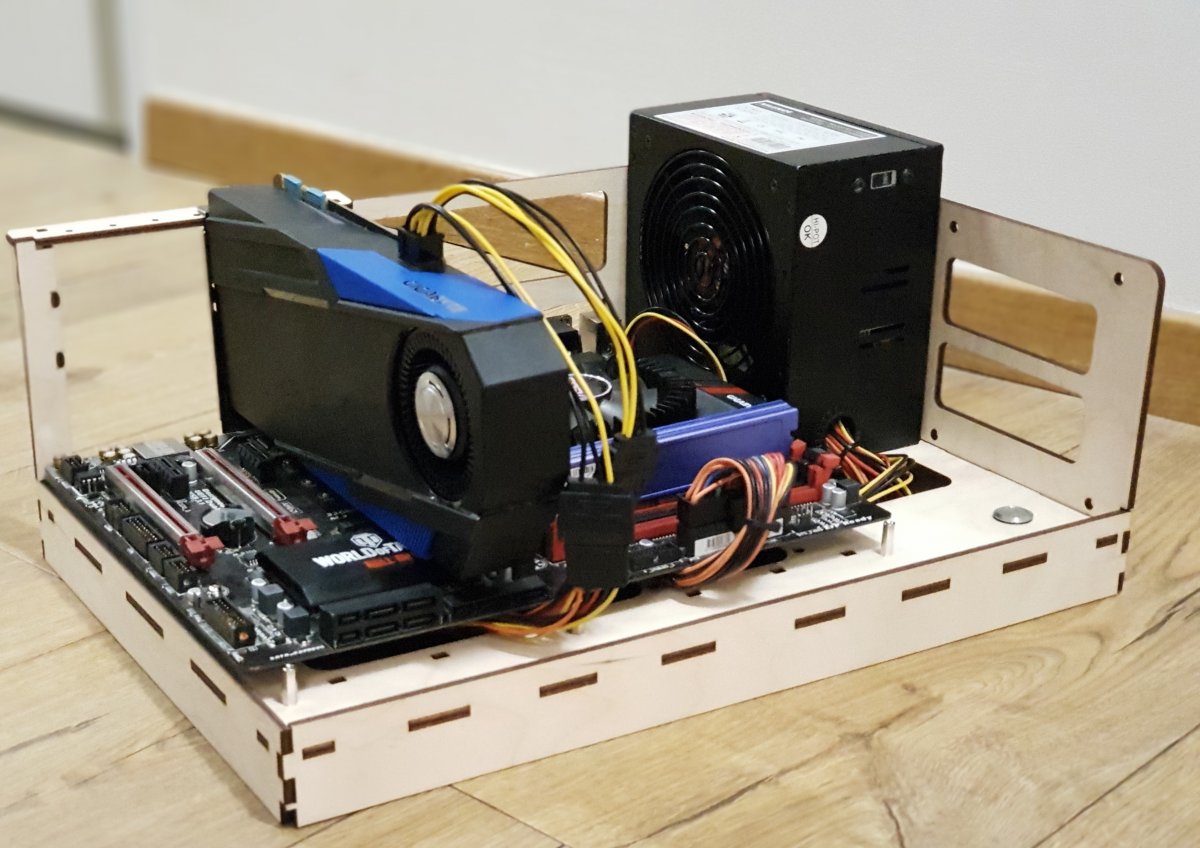

W-CASE 2
Flat case made of wood- Test bench
- Natural materials

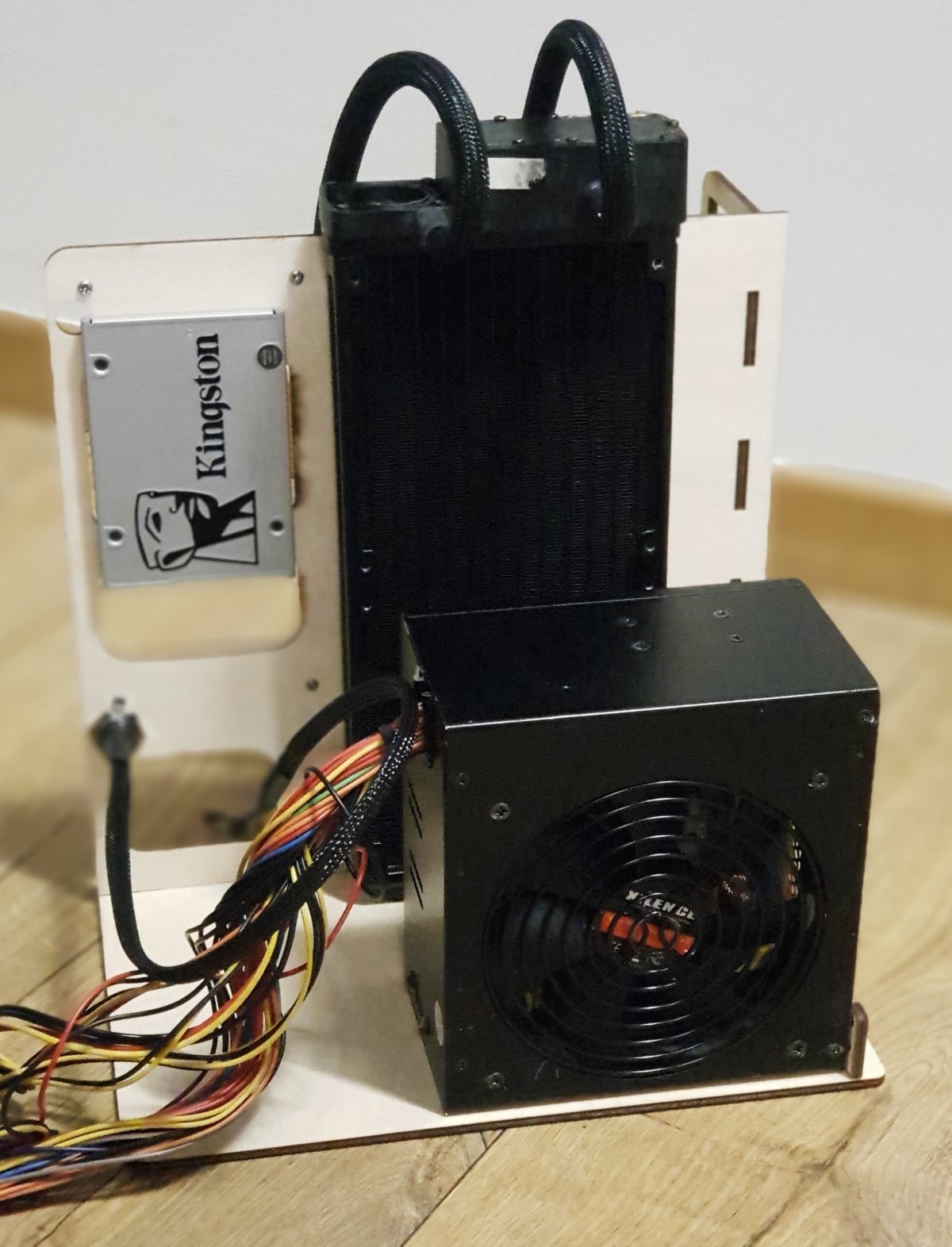

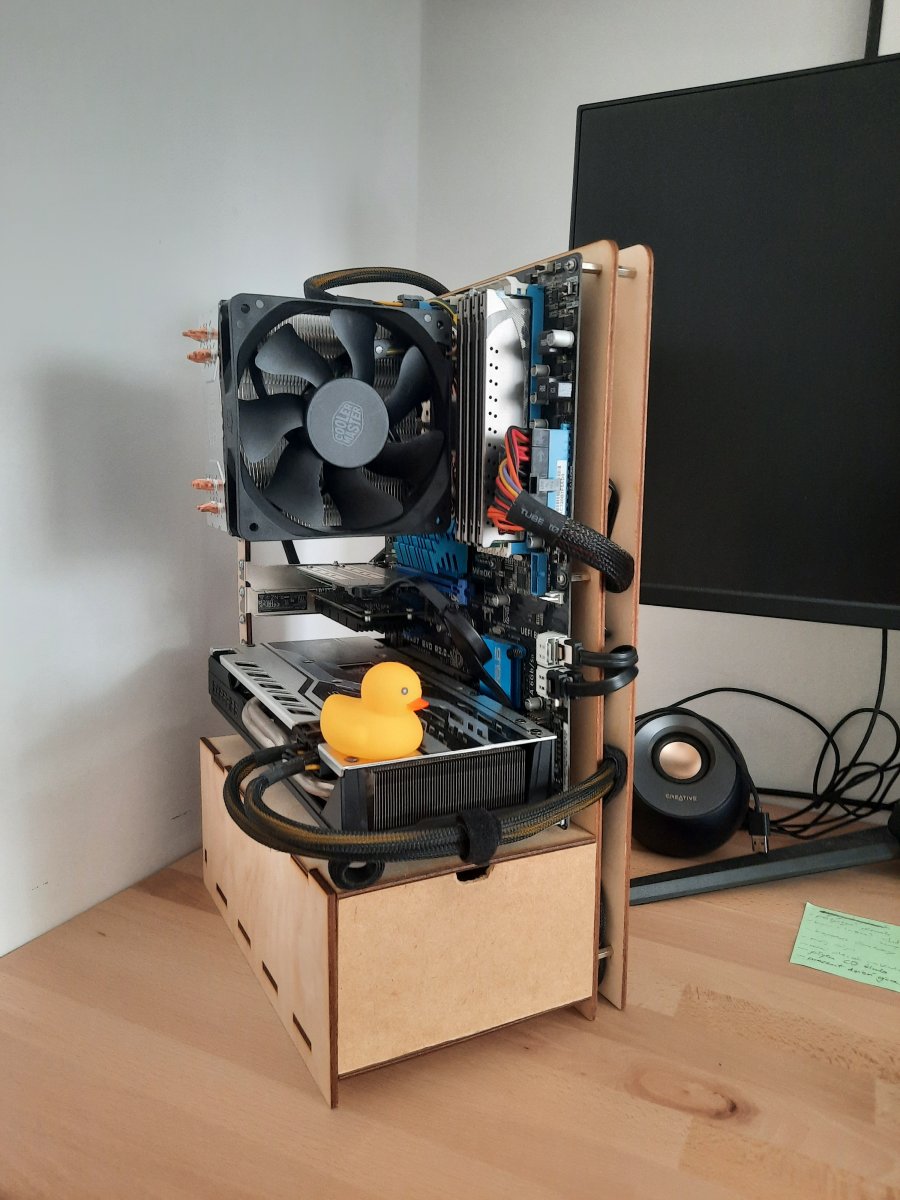

W-CASE 3 mATX
Smallest wooden case- Test bench
- Natural materials
- PSU in two positions
| W-CASE 1 | W-CASE 1 mATX | W-CASE 2 | W-CASE 3 mATX | |
|---|---|---|---|---|
| Material: | Wood - birch 4 [mm] | Wood - birch 4 [mm] | Wood - birch 4 [mm] | Wood - birch 4 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | - | - | 1 |
| Socket SSD 2,5" | 2 | 2 | 3 | 2 |
| Expansion slots | 7 | 5 | 7 | 5 |
| Cooling support | AIO | AIO | AIO | 1 x FAN 120 [mm] or AIO |
| Cooler support | 240 [mm] | 240 [mm] | 240 [mm] | 240 [mm] |
| PSU position / PSU standard | Horizontal / ATX | Horizontal / ATX | Vertical / ATX | Horizontal / Vertical / ATX |
| CPU cooling height | No limit | No limit | No limit | No limit |
| Max GPU length | No limit | No limit | No limit | No limit |
| Cable management | 18 [mm] | 18 [mm] | 18 [mm] | - |
| Work position | Horizontal / Vertical | Horizontal / Vertical | Horizontal | Vertical |
| Power button | Front | Front | Front |
Front |
| Weight | 0,86 [kg] | 0,76 [kg] | 0,52 [kg] | 0,5 [kg] |
| Dimensions | 26,3 x 43 x 18,4 [cm] | 37,9 x 26,3 x 18,4 [cm] | 41 x 29 x 15,4 [cm] | 26,3 x 29,4 x 25,9 [cm] |
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version
RAW
Natural wood color.
Construction made of 4mm thick birch wood.
There may be rings or knots on the elements, it is natural for this material.
Darker edges are naturally produced by laser cutting.
Does not include power ON button - available for purchase separately.
