H-CASE

Series that can be hang on the wall

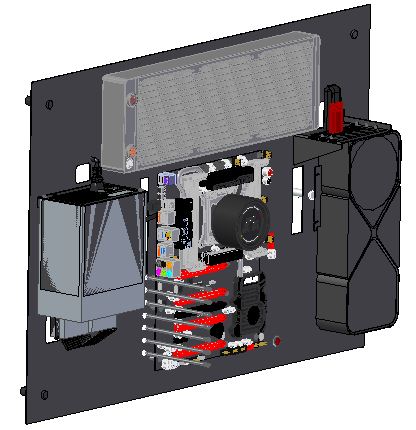

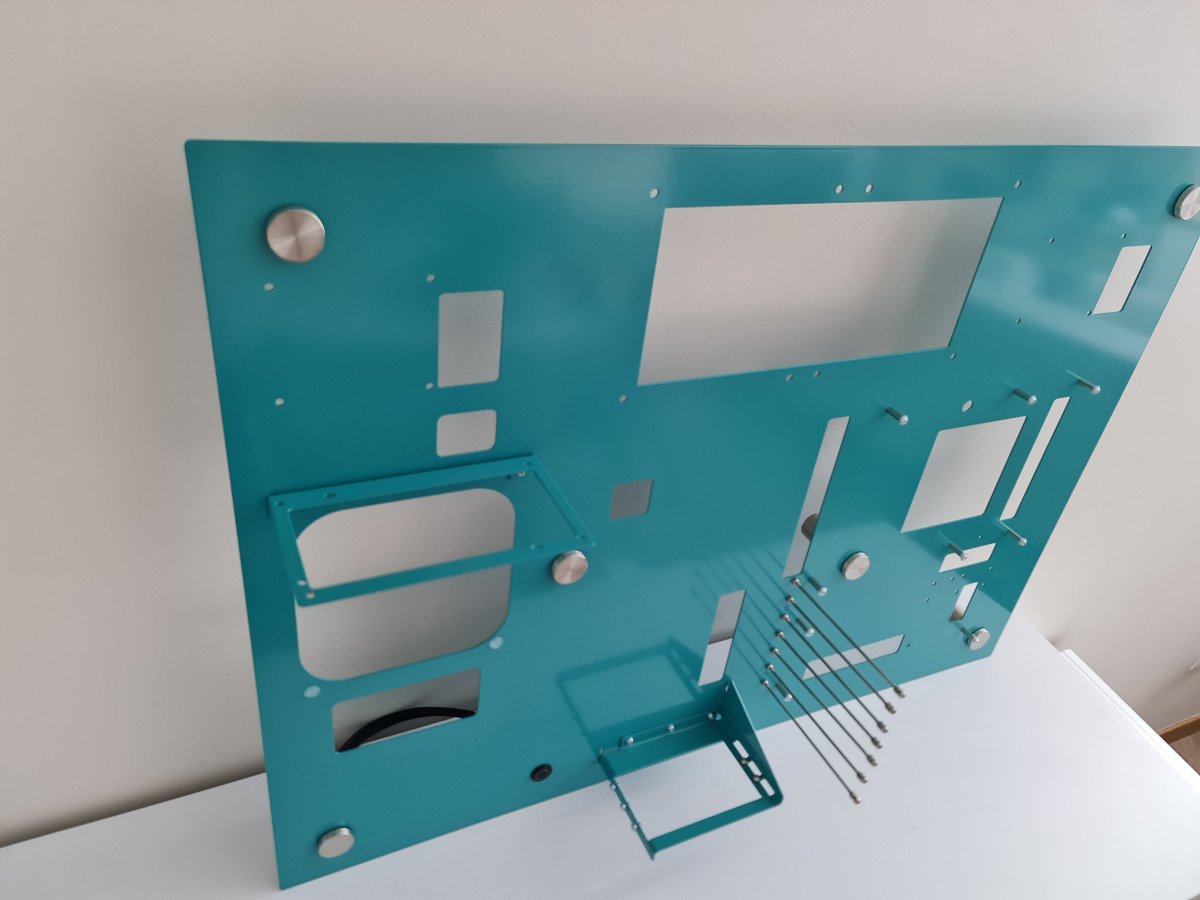

H-CASE 1
Great power plate
- Wall mounting
- Flat shape
- Support big cooler 420 mm
H-CASE 2
Uniwersal system
- Many applications
- Modular assembly
- Any arrangement
H-CASE 3
Little brother of H-CASE 1
- Compact flat size
- Support cooler 420 mm
- Support heavy GPU
H-CASE 4
GPU rotated 180deg
- Compact flat size
- Support cooler 280 mm
- Support GPU up to 328 mm lenght

H-CASE 1 H-CASE 2 H-CASE 3H-CASE 4
Material:Steel DC01 1,5 [mm]   Steel DC01 1,0 [mm] Steel DC01 1,5 [mm]Steel DC01 1,5 [mm]
Motherboard support ATX, micro-ATX, mini-ITX  ATX, micro-ATX, mini-ITX ATX, micro-ATX, mini-ITXATX, micro-ATX, mini-ITX
Socket HDD 3,5"1 Yes --
Socket SSD 2,5"4 Yes -2
Expansion slots7 7 77
Cooling supportAIO AIO AIOAIO
Cooler support  420 [mm]
All types 420 [mm]280 [mm]
PSU position / PSU standardVeritcal / ATX Veritcal / ATX Veritcal / ATXVeritcal / ATX
CPU cooling height  No limit
No limit No limitNo limit
Max GPU length  No limit No limit No limit328 [mm]
Cable management    40 [mm] 20 [mm] 40 [mm]40 [mm]
Work position  Vertical on the wall  Vertical on the wall Vertical on the wallVertical on the wall
Power button    Front panel Front panel
Front panelFront panel
Weight  5,8 [kg] 7 [kg] 5 [kg]4,1 [kg]
Dimensions  100 x 53 x 4[cm]  120 x 60 x 2 [cm] 80 x 53 x 4 [cm]72,2 x 53 x 4 [cm]
  • The power supply separated by silicone spacers does not cause vibrations.
  • The mainboard is mounted on brass sleeves.
  • Separated directly by vibration damping pads.
  • The case has numerous holes for aesthetic arrangement of wires.
  • The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version


RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
