R-CASE
Design for rack assembly

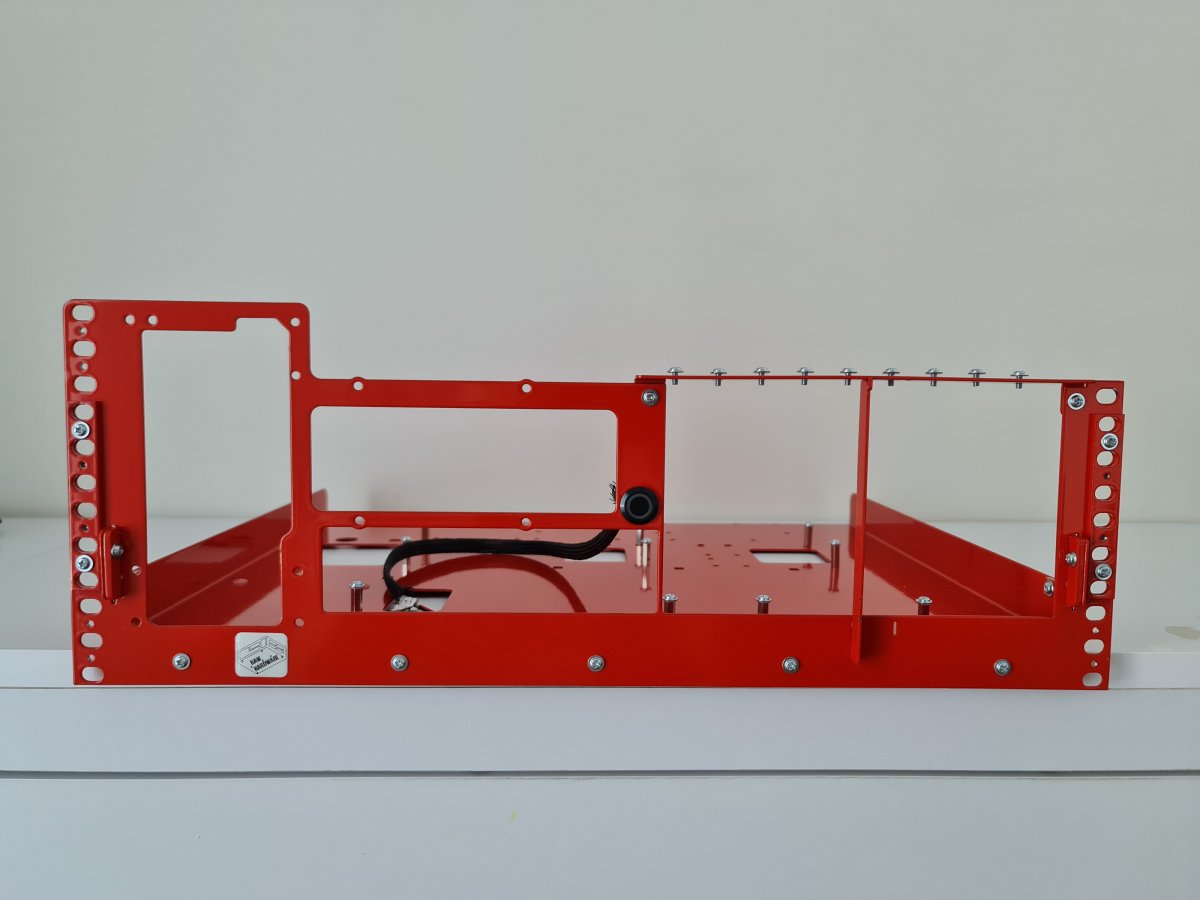

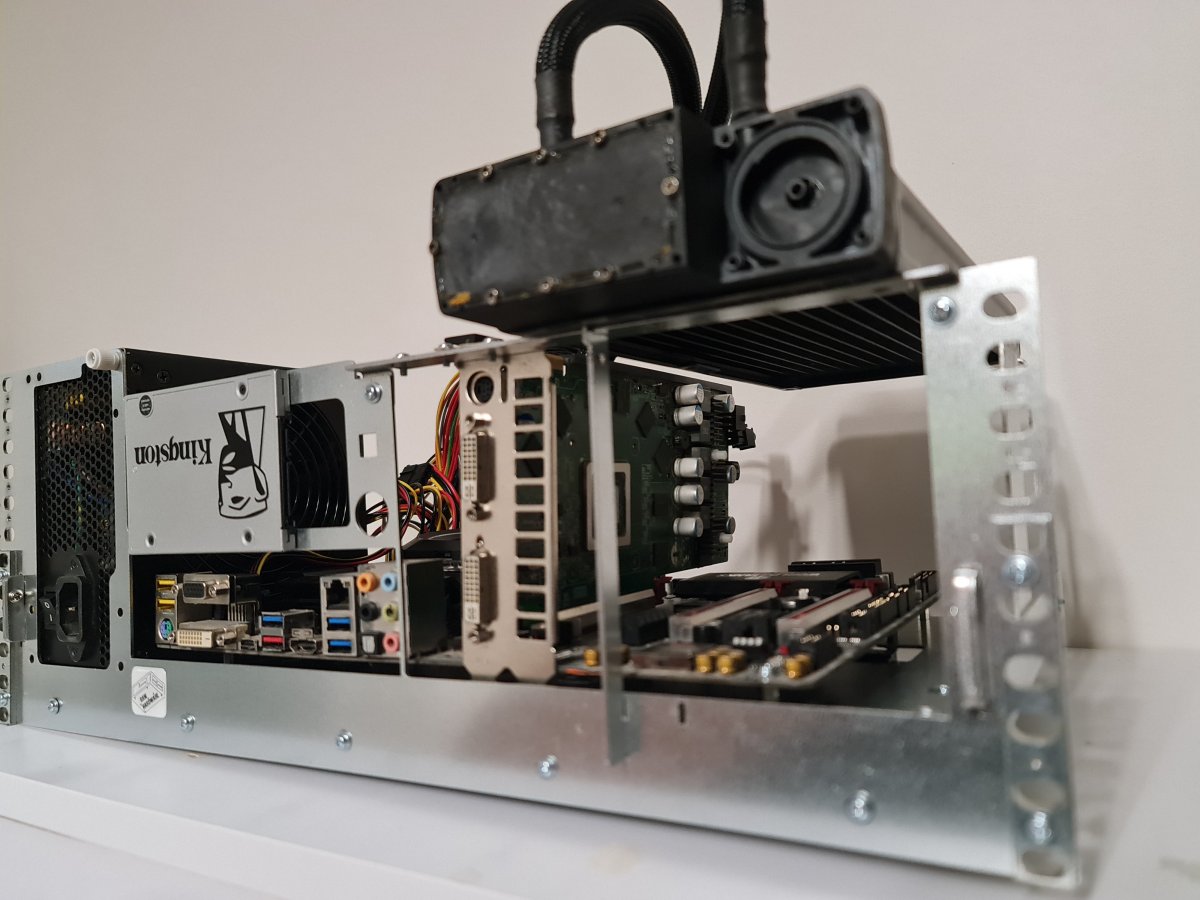

R-CASE - 1
Simple PC plate for RACK- Standard for rack 19 inch
- Flat shape
- Up to 10 extension slots
- ATX size
R-CASE - 1 PRO
Updated version of R-CASE - 1- AIO 240 [mm] avaiable
- total depth reduced to 255 [mm]

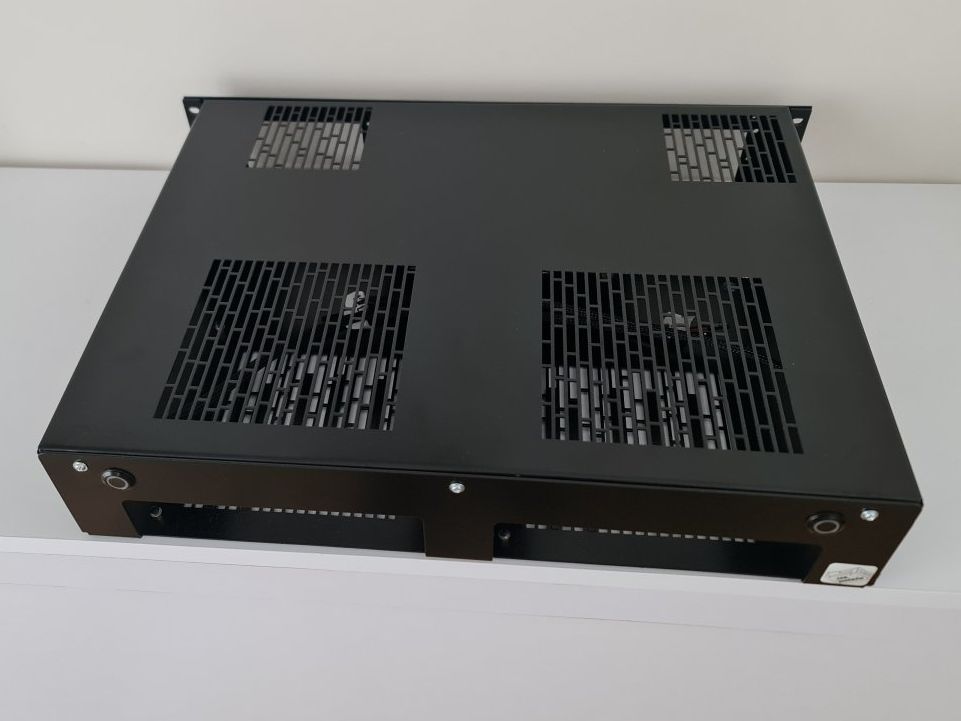

R-CASE - 2 DUAL
Dual PC CASE for RACK 19 inch- 2 x SFX
- 2 x mITX
- Good arirflow
- 2U dimensions
- Good arirflow
- 2U dimensions

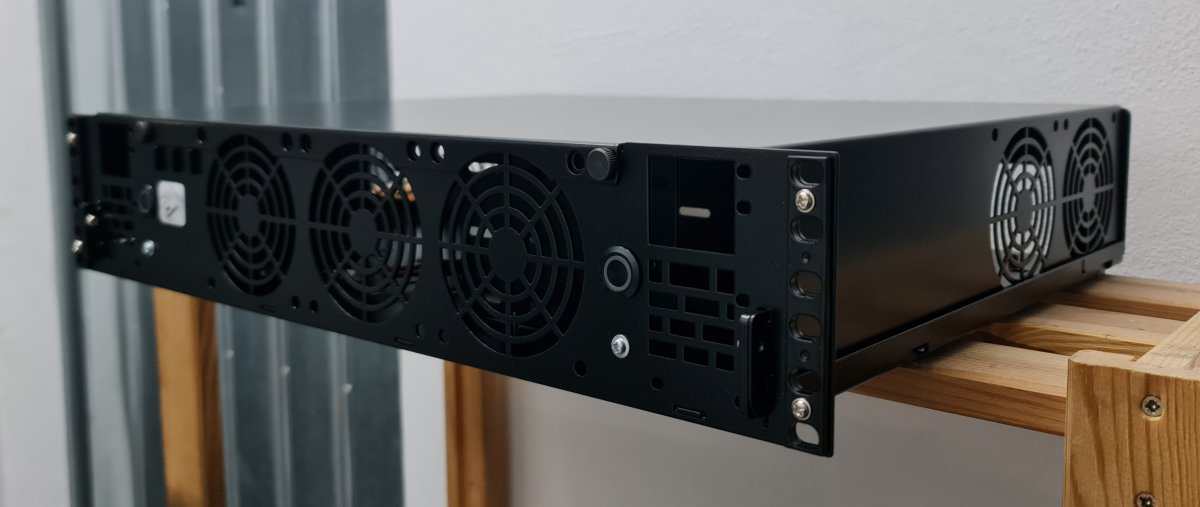

R-CASE - 2 PRO
Updated R-CASE 2
- 2 x FLEX ATX
- 2 x mITX + low profile GPU
- 2U dimensions
- Rear instalation in rack
- 2 x mITX + low profile GPU
- 2U dimensions
- Rear instalation in rack
| R-CASE 1 | R-CASE 1 PRO | R-CASE 2 | R-CASE 2 PRO | |
|---|---|---|---|---|
| Material: | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | 2 x mini-ITX | micro-ATX, mini-ITX |
| Socket HDD 3,5" | (0)-2 | 0-3 | (0)-2 | 3 |
| Socket SSD 2,5" | 1-(4) | 1-(4) | 1-(4) | 3 |
| Expansion slots | 9 | 9 | 0 | 1 + 1 |
| Cooling support | - | AIO | 4 x FAN 80x80 | 7 x FAN 80x80 |
| Cooler support | - |
240 [mm] | - | - |
| PSU position / PSU standard | Veritcal / ATX | Veritcal / ATX | Horizontal / 2x SFX | Horizontal / 2x flex ATX |
| CPU cooling height | No limit |
No limit | 70 [mm] | 70 [mm] |
| Max GPU length | No limit | No limit | - | 1 slot low profile GPU |
| Cable management | - | - | 70 [mm] | 70 [mm] |
| Work position | RACK 19 inch | RACK 19 inch | RACK 19 inch | RACK 19 inch |
| Power button | Front or back | Front |
2 x Front | 2 x Front |
| Weight | 2,6 [kg] | 2,0 [kg] | 4,1 [kg] | 4,5 [kg] |
| Dimensions | 48,3 x 34,9 x 17,6 [cm] | 48,3 x 25,5 x 17,6 [cm] | 48,3 x 34,8 x 8,8 [cm] | 48,3 x 34,8 x 8,8 [cm] |

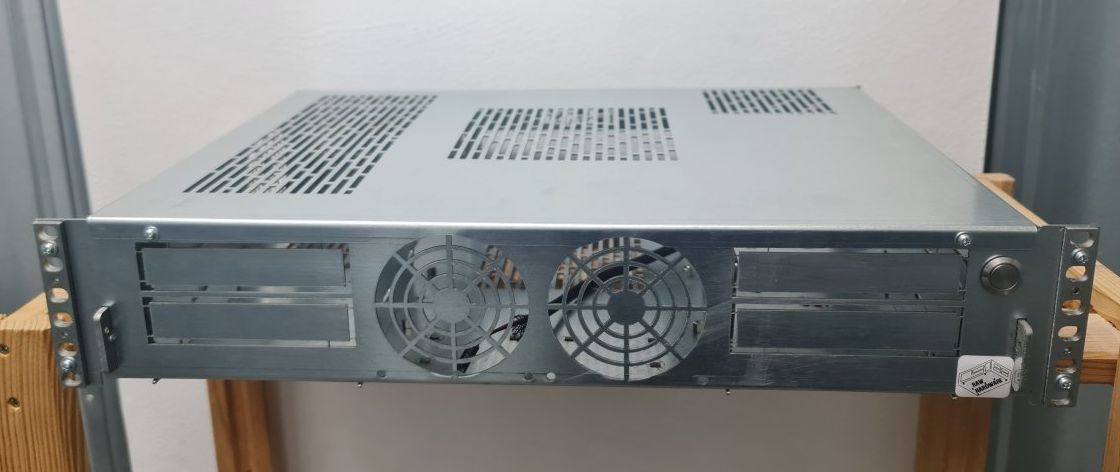

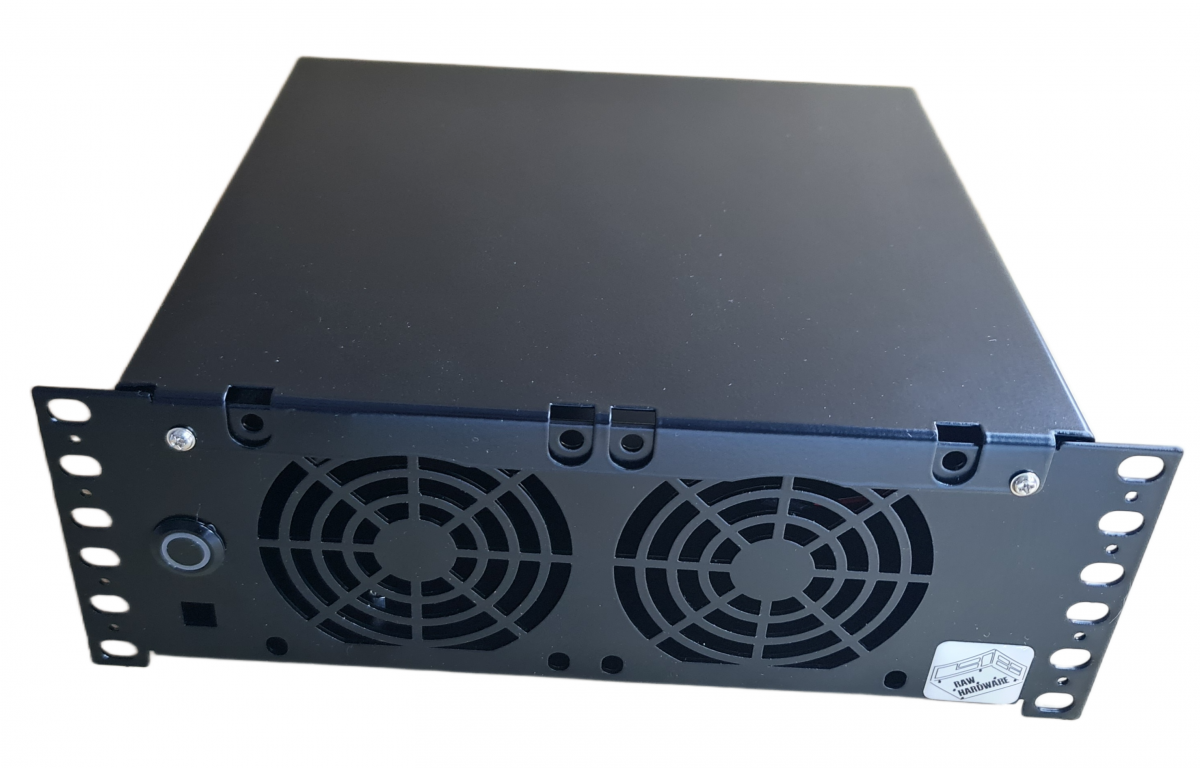

R-CASE - 3
Special close system for RACK 19 inch- mATX size- place for 3.5 inch front panel
- SFX PSU
- 2U dimensions
- Rear instalation in rack
- SFX PSU
- 2U dimensions
- Rear instalation in rack

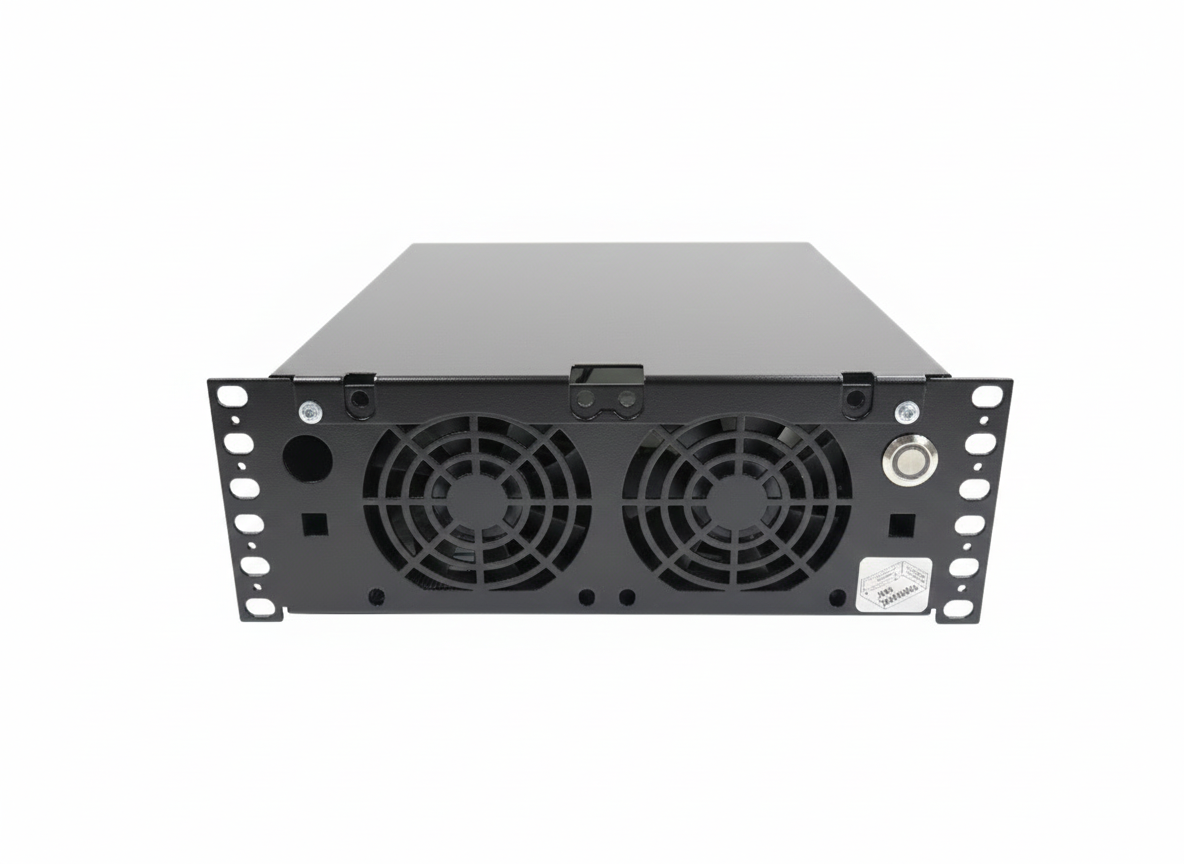

R-CASE - 4
Special close system for RACK 19 inch
- Standard for rack 19 inch- mATX / ITX size
- place for 3.5 inch front panel
- SFX PSU
- 2U dimensions
- Front instalation in rack
- place for 3.5 inch front panel
- SFX PSU
- 2U dimensions
- Front instalation in rack

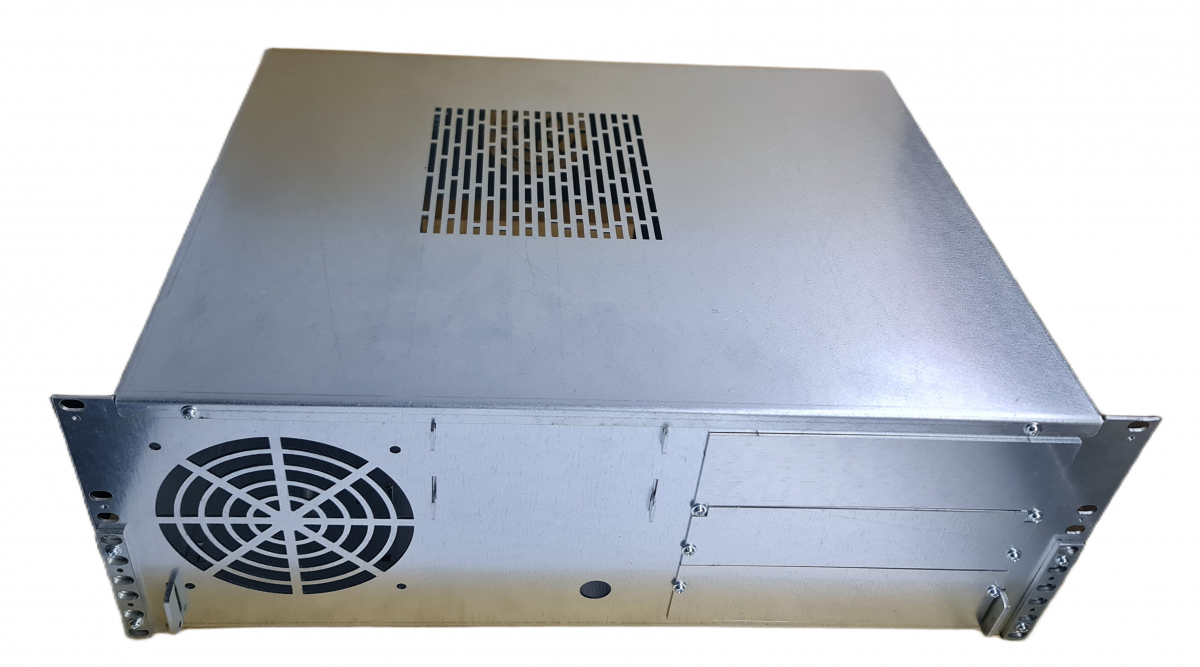

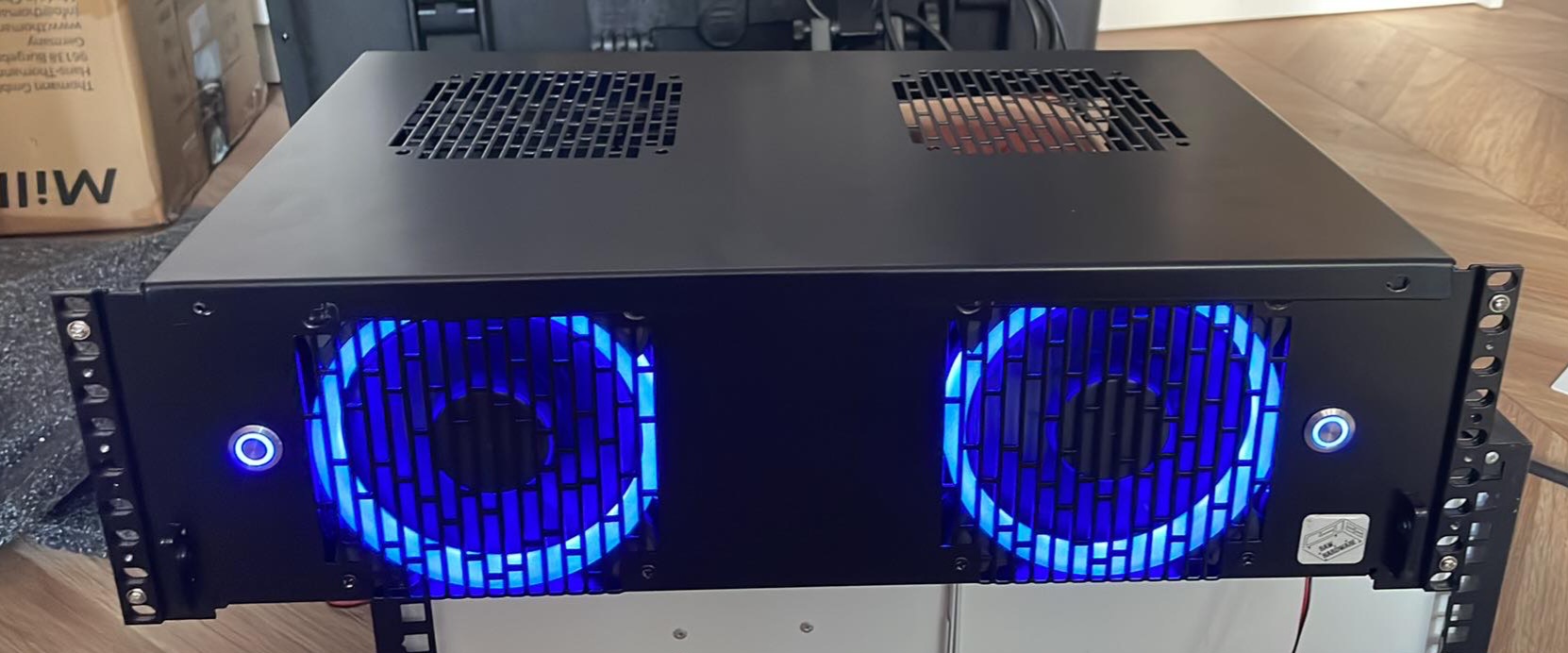

R-CASE - 5
3U DUAL
- Standard for rack 19 inch
- Great air flow up to 4 x 120 FAN
- 2 x ITX
- 2 x 1U FLEX ATX
- 2 x ITX
- 2 x 1U FLEX ATX
| R-CASE 3 | R-CASE 4 |
R-CASE 5 | ||
|---|---|---|---|---|
| Material: | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | |
| Motherboard support | micro-ATX, mini-ITX | micro-ATX, mini-ITX | 2 x ITX, mini-ITX | |
| Socket HDD 3,5" | 1-2 | 1-4 | 0 | |
| Socket SSD 2,5" | 1 | 1 | 0 | |
| Expansion slots | 0 | 0 | 0 | |
| Cooling support | 3 x FAN 70x70 | 4x FAN 80-80 | 4 x FAN 120 | |
| Cooler support | - |
- | - | |
| PSU position / PSU standard | Horizontal / SFX | Horizontal / SFX | Veritcal / 2 x FLEX ATX - 1U | |
| CPU cooling height | 70 [mm] |
70 [mm] | 120 [mm] | |
| Max GPU length | 300 [mm] | 300 [mm] | - | |
| Cable management | 70 [mm] | 70 [mm] | - | |
| Work position | RACK 19 inch | RACK 19 inch | RACK 19 inch | |
| Power button | Front | Front |
2 x Front | |
| Weight | 3,3 [kg] | 3,4 [kg] | 3,7 [kg] | |
| Dimensions | 48,3 x 8,7 x 31,6 [cm] | 48,3 x 8,7 x 31,6 [cm] | 48,3 x 27 x 13,1 [cm] |

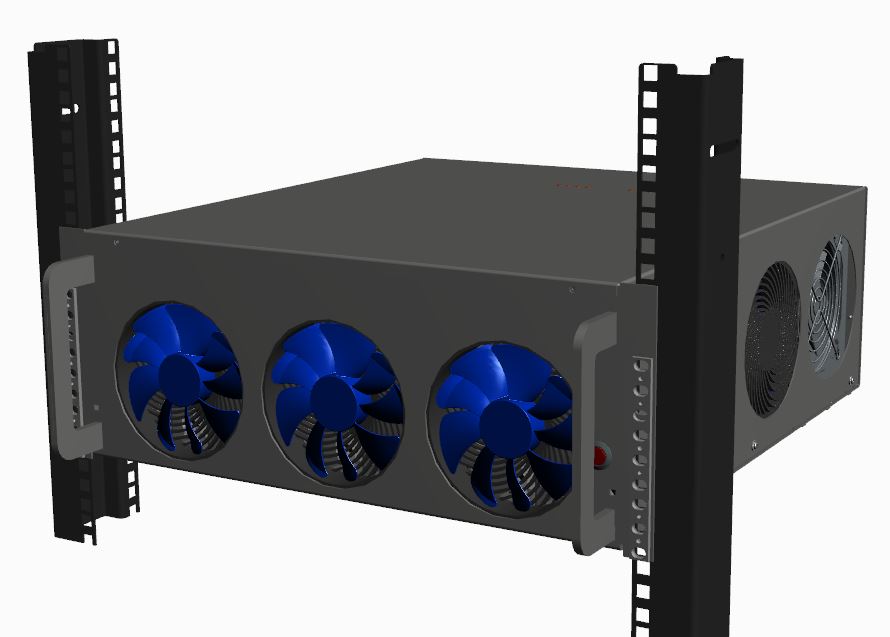

R-CASE - FAN plate FRONT
Accesories for RACK 19 inch- for standard 2 x 200 [mm] FAN
- or 3 x 140 [mm] FAN
R-CASE - FAN plate 1U
- Rail system for rack 19 inch
- 4 x 200 [mm] FAN
- Can be use as shelf

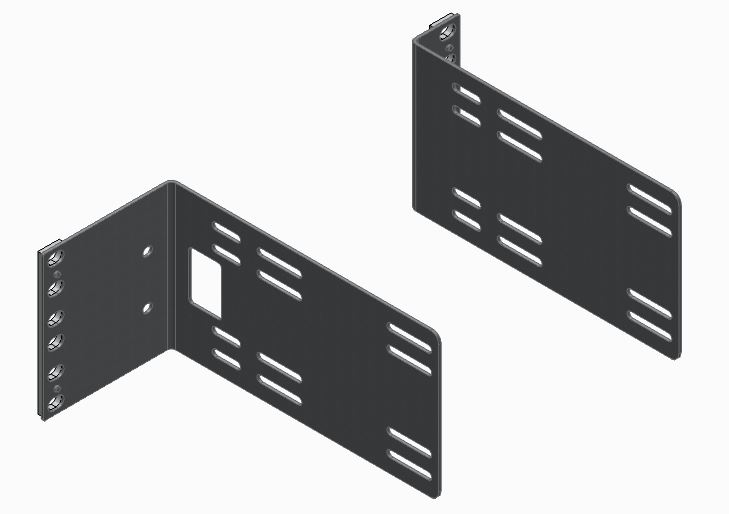

R-CASE - Bracket
Uniwersal switch assembly- For typical ruter size:
27,94 x 287 x 101,6 [mm]
R-CASE - Rail
- Rail system for rack 19 inch
- Two way to assembly
- You can install ordinary flat shelves
- You can install ordinary flat shelves

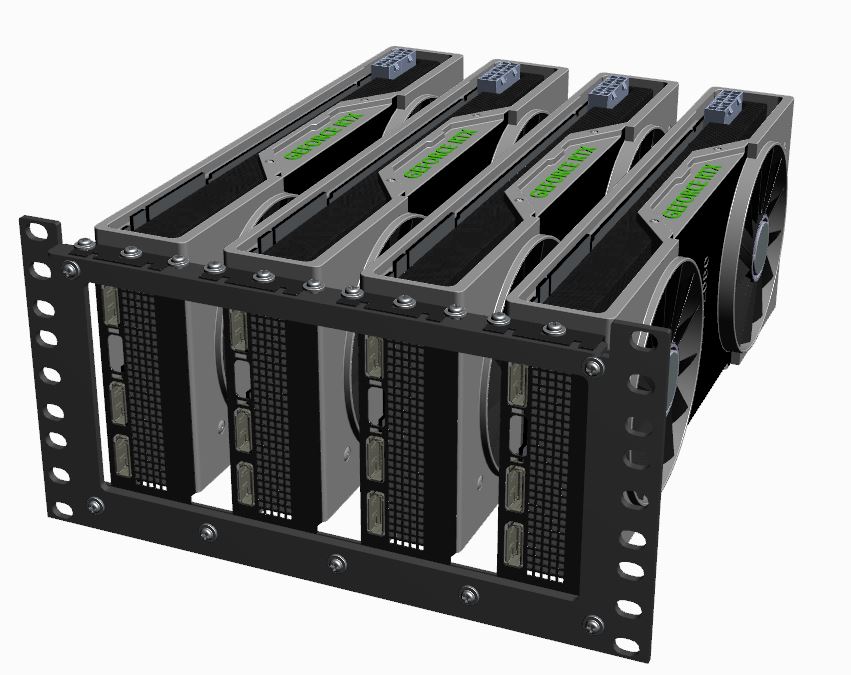

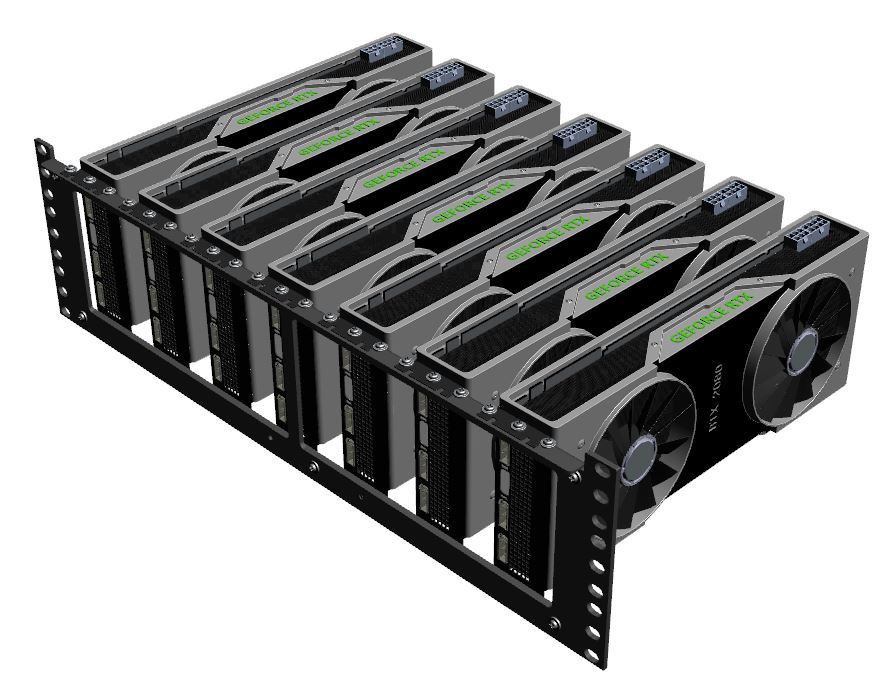

R-CASE - GPU Holder
Accesories for RACK 19 inch- up to assemble 7 pcs of GPU
- 4U dimension
R-CASE - HDD Holder
Accesories for RACK 19 inch- up to assemble 9 x HDD + 4 x SSD
- 2U dimension
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version

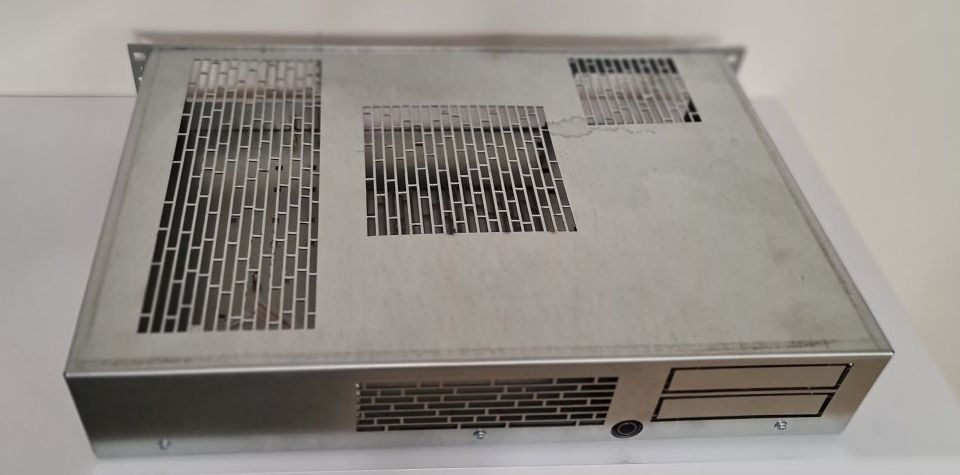

- RAW Not painted,
- simple power button
- The external color is obtained by galvanizing.
- On the surface there are visible traces of bending of the forms and possible laser burns.
