I-CASE
Simple vertical series. Thick sheet metal

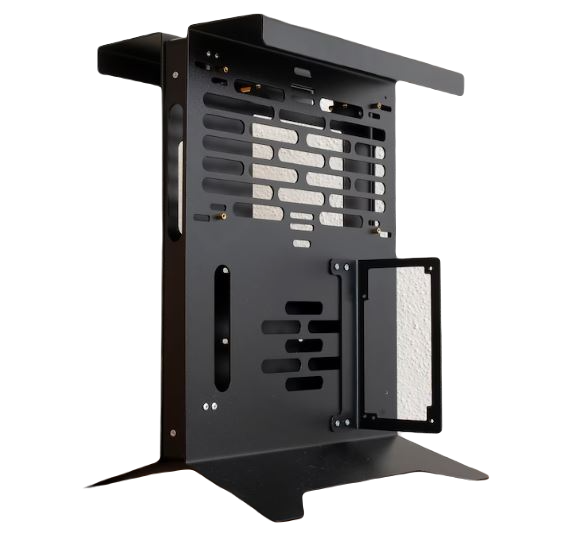

I-CASE 1 ATX
- Wall mounting
- Flat shape
I-CASE 1 mITX
- Many applications
- Modular assembly
- Any arrangement

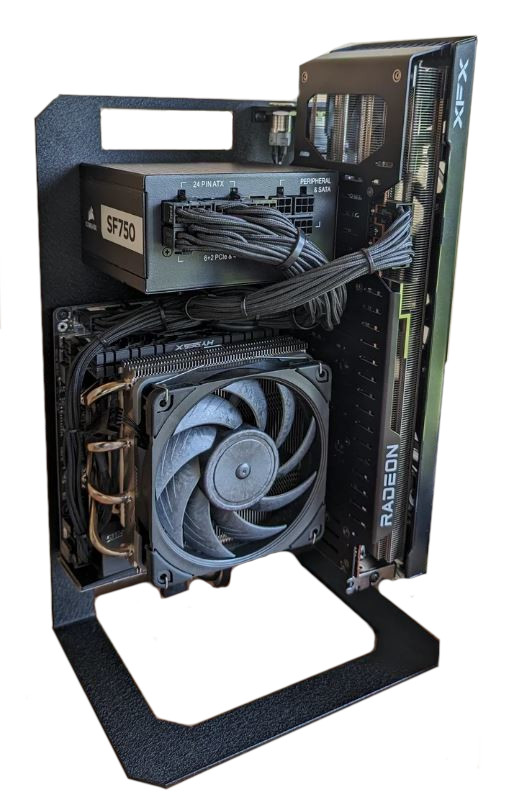

I-CASE 2 mITX
- Compact flat size
- Motherboard rotated 90 deg
- Support heavy GPU
| I-CASE 1 | I-CASE 1 mITX | I-CASE 2 mITX | ||
|---|---|---|---|---|
| Material: | Steel DX51+Z 2,5 [mm] | Steel DX51+Z 2,5 [mm] | Steel DX51+Z 2,5 [mm] | |
| Motherboard support | ATX, micro-ATX, mini-ITX | mini-ITX | mini-ITX | |
| Socket HDD 3,5" | 1 | Yes | - | |
| Socket SSD 2,5" | 4 | Yes | - | |
| Expansion slots | 7 | 7 | 1 | |
| Cooling support | AIO | AIO | - | |
| Cooler support | 420 [mm] |
All types | - | |
| PSU position / PSU standard | Veritcal / ATX | Veritcal / ATX | Veritcal / ATX | |
| CPU cooling height | No limit |
No limit | No limit | |
| Max GPU length | No limit | No limit | No limit | |
| Cable management | 40 [mm] | - | - | |
| Work position | Vertical on the wall | Vertical on the wall | Vertical | |
| Power button | Front panel | Front panel |
Front panel | |
| Weight | 5,8 [kg] | 7 [kg] | 1,2 [kg] | |
| Dimensions | 100 x 53 x 4[cm] | 120 x 60 x 2 [cm] | 24 x 33 x 15,3 [cm] |
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version
RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
