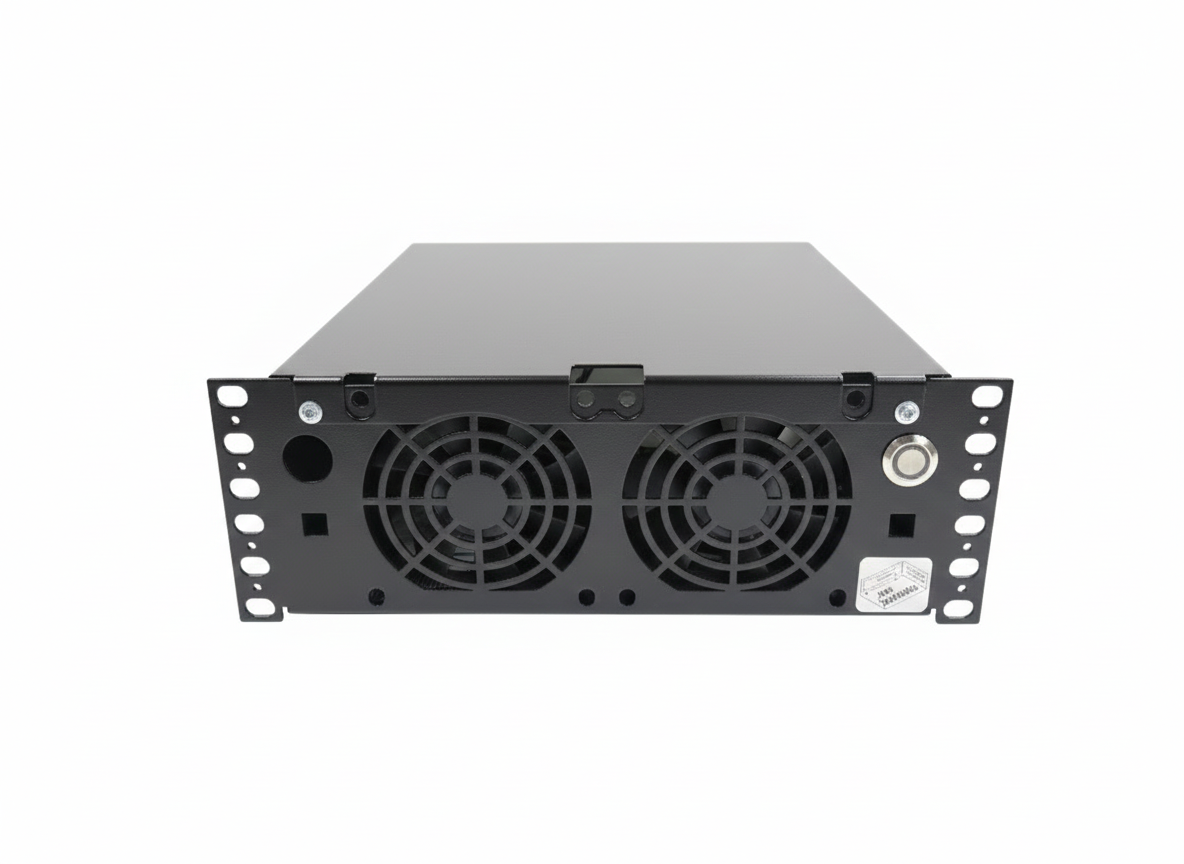

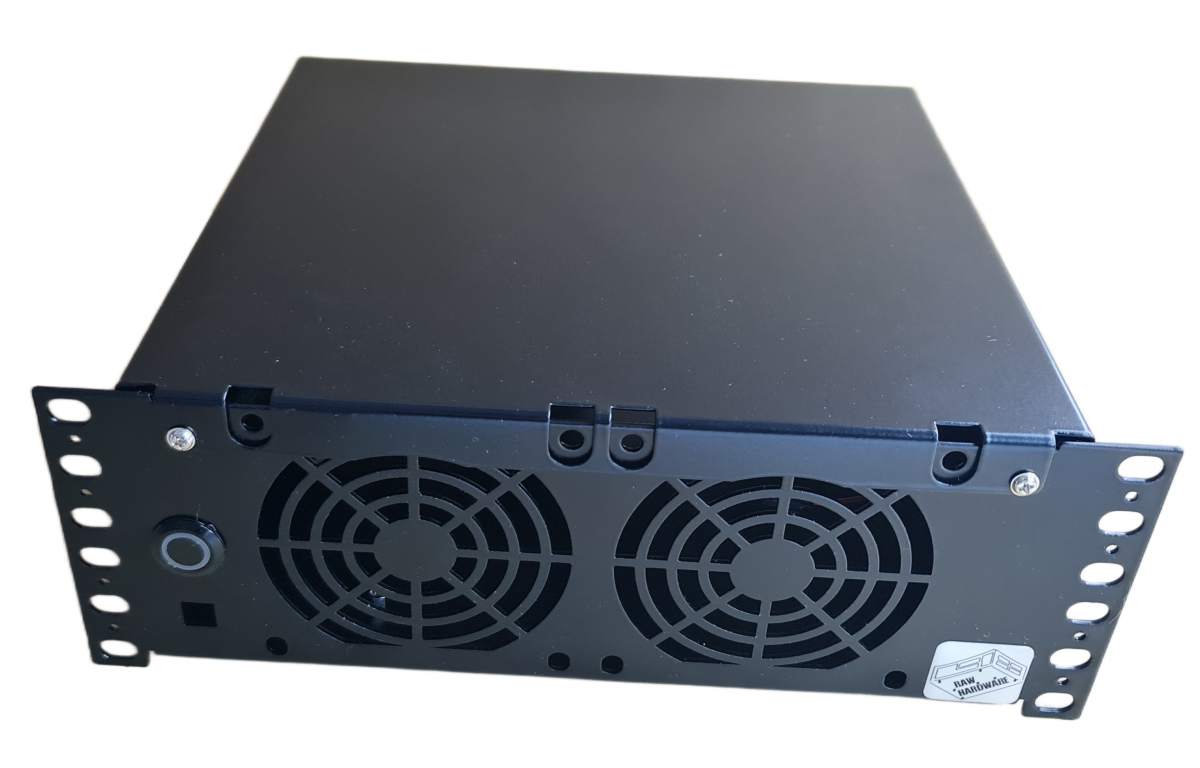

| R-CASE 7 mITX 10" |
R-CASE 7 mITX 10" LONG | R-CASE 8 mATX 19" | ||
|---|---|---|---|---|
| Material: | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | |
| Motherboard support | mini-ITX | mini- ITX | mATX , mini- ITX | |
| Socket HDD 3,5" | 0 | 0 | 2 | |
| Socket SSD 2,5" | 0 | 0 | 0 | |
| Socket 5,25 " | 0 | 0 | 3 | |
| Expansion slots | 2 | 2 | 5 | |
| Cooling support | 2 x FAN 80x80 | 2 x FAN 80x80 | 1 x FAN 120x120 , 1 x FAN 80x80 | |
| Cooler support | - | - | - | |
| PSU position / PSU standard | Vertical / flex ATX | Vertical / flex ATX | Vertical / ATX / SFX | |
| CPU cooling height | 70 [mm] | 70 [mm] | 120 [mm] | |
| Max GPU length | - | - | 320 [mm] | |
| Cable management | 70 [mm] | 70 [mm] | 120 [mm] | |
| Work position | RACK 10 inch | RACK 10 inch | RACK 19 inch | |
| Power button | Front |
Front | Front | |
| Weight | 1,4 [kg] | 1,5 [kg] | 6,2 [kg] | |
| Dimensions | 25,4 x 19 x 8,8 [cm] | 25,4 x 27,8 x 8,8 [cm] | 48,3 x 32 x 17,5 [cm] |

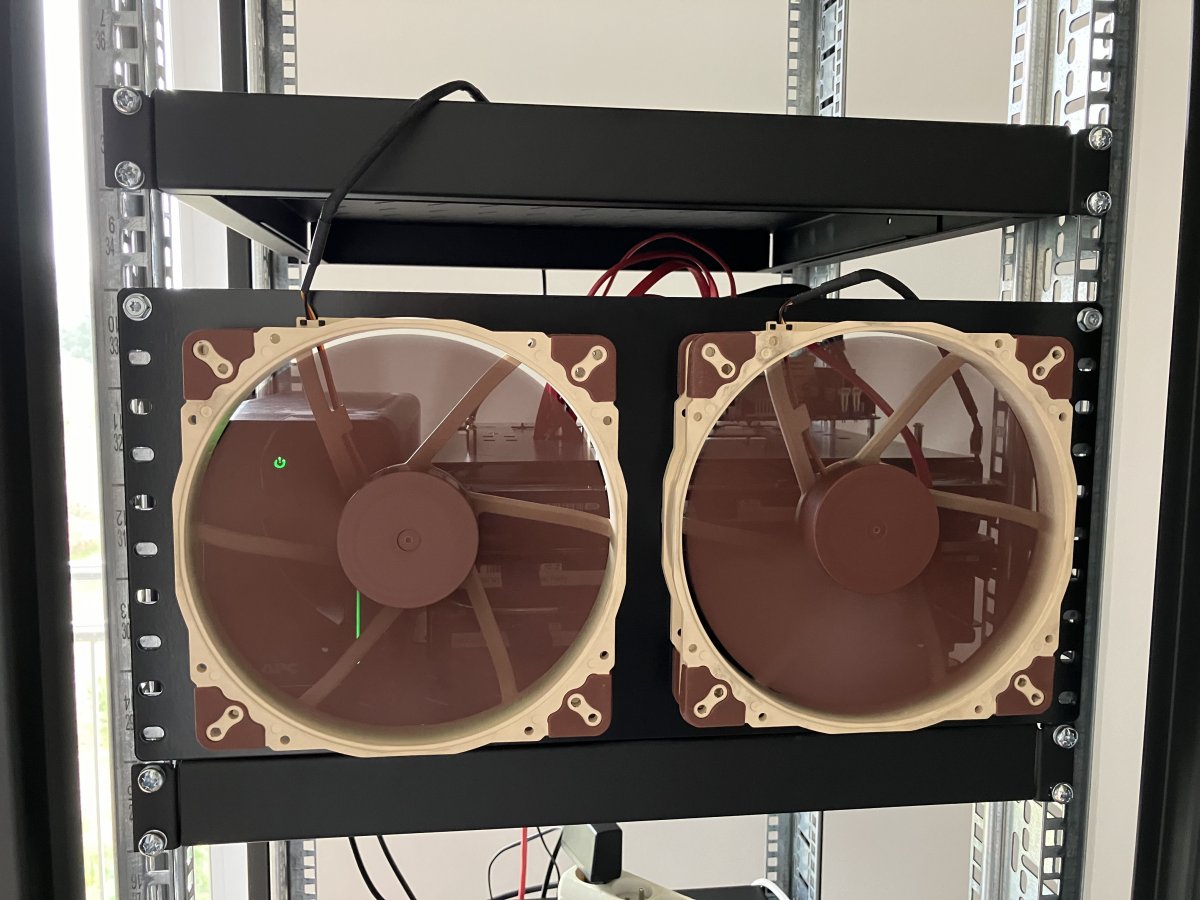

R-CASE - FAN plate FRONT
Accesories for RACK 19 inch- for standard 2 x 200 [mm] FAN
- or 3 x 140 [mm] FAN

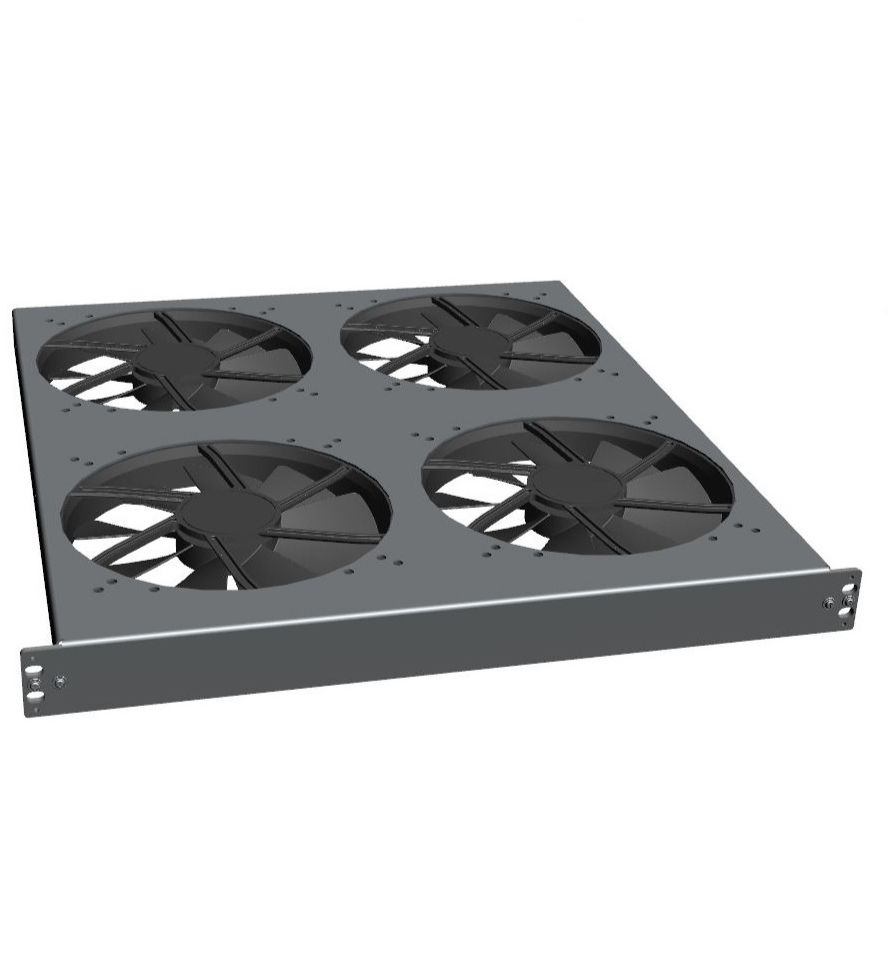

R-CASE - FAN plate 1U
- Rail system for rack
- 4 x 200 [mm] FAN
- Can be use as shelf
R-CASE - Bracket
Uniwersal switch assembly- For typical ruter size:
27,94 x 287 x 101,6 [mm]

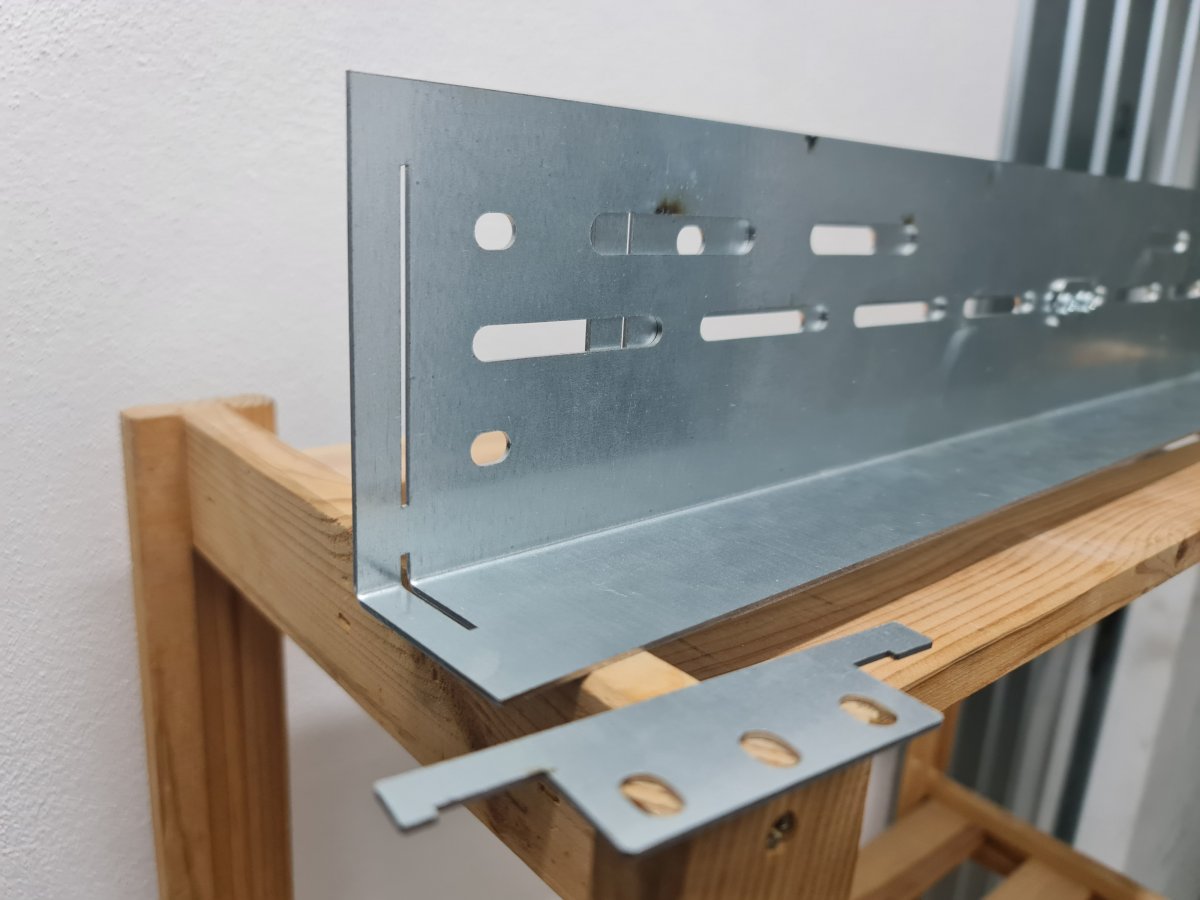

R-CASE - Rail
- Rail system for rack
- Two way to assembly
- You can install ordinary flat shelves
- You can install ordinary flat shelves
R-CASE - GPU Holder
Accesories for RACK 19 inch- up to assemble 7 pcs of GPU
- 4U dimension
R-CASE - GPU Holder 10"
Accesories for RACK 19 inch- up to assemble 5 pcs of GPU
- 4U dimension
R-CASE - HDD Holder
Accesories for RACK 19 inch- up to assemble 9 x HDD + 4 x SSD
- 2U dimension
R-CASE - HDD Holder 10"
Accesories for RACK 10 inch- up to assemble 3 x HDD + 4 x SSD
- 2U dimension
R-CASE - 6 x HDD Holder 10"
Accesories for RACK 10 inch- up to assemble 6x HDD drives
- 3U dimension
R-CASE - 5,25 Holder
Accesories for RACK 10 inch- up to assemble 2 x 5,25 drive
- 2U dimension
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.

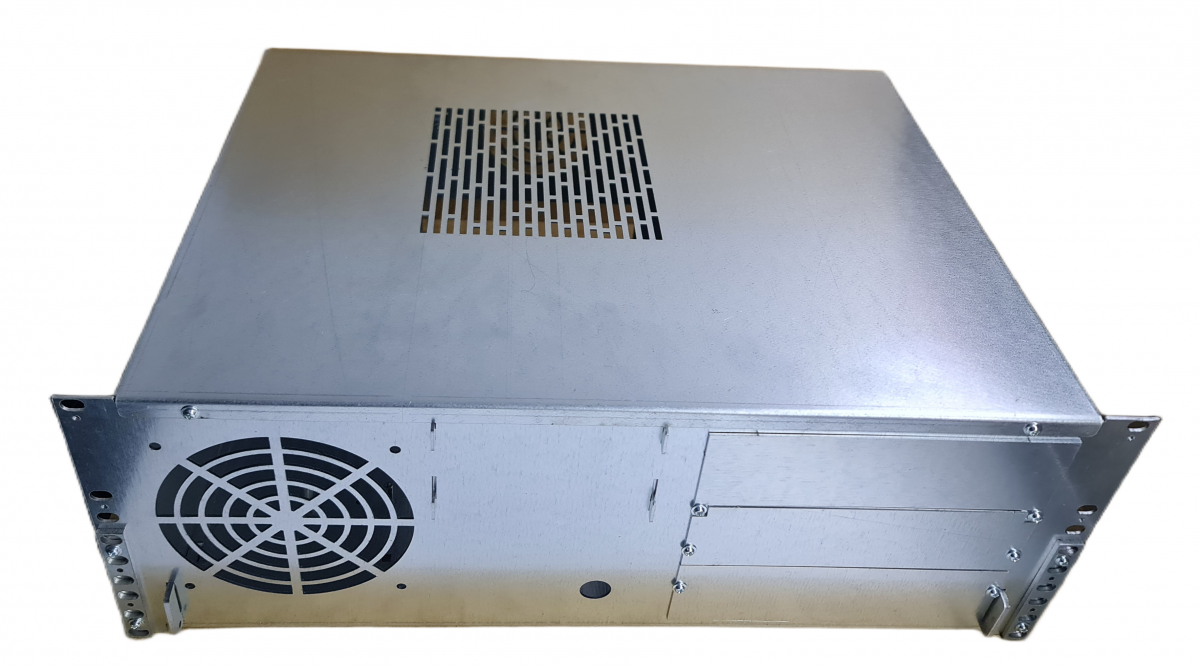

Available version
RAW Not painted,
no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.

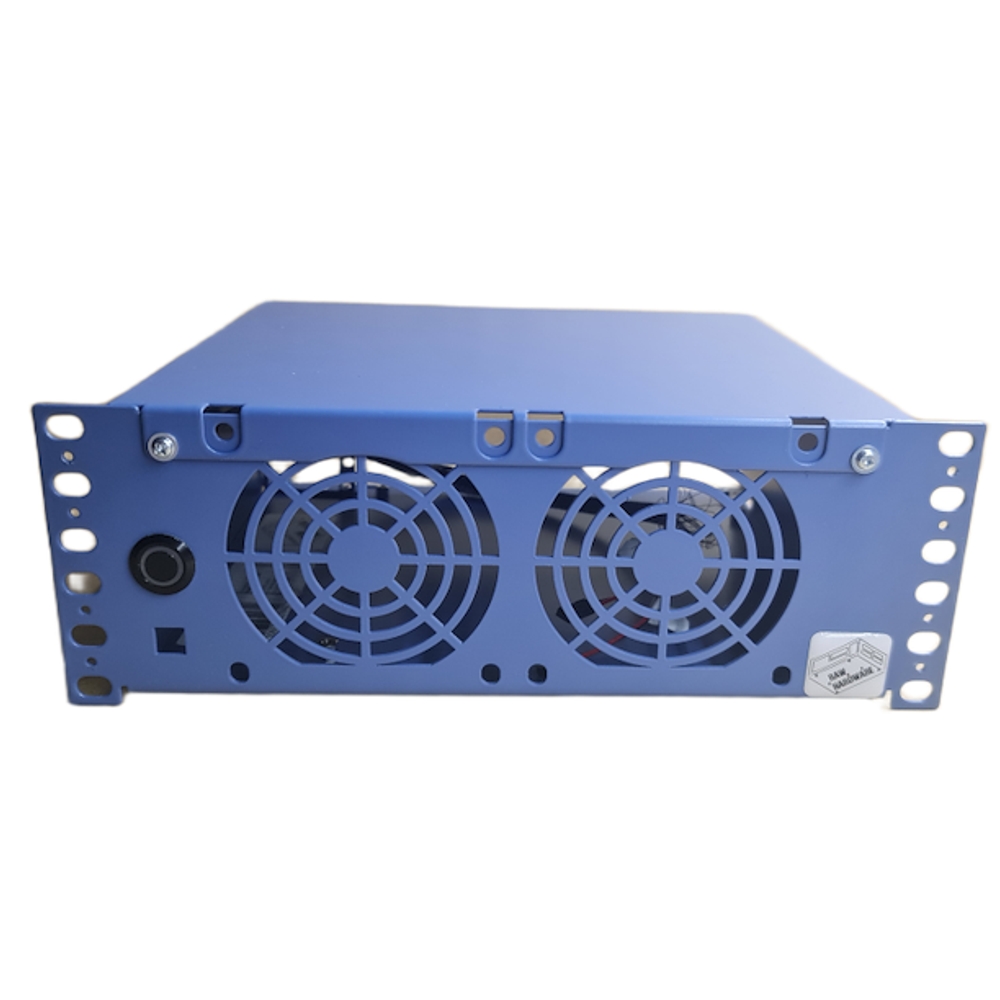

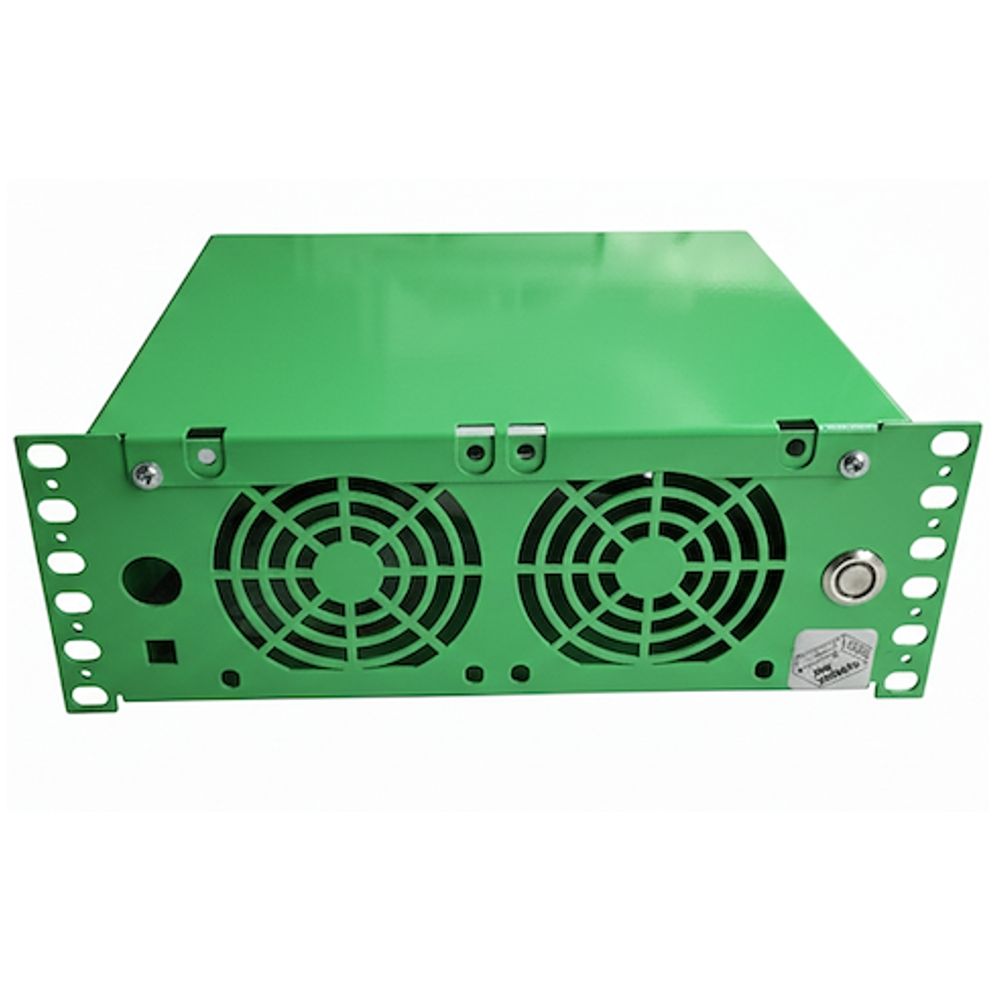

RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
