P-CASE
Compact size. Wide range of applications.

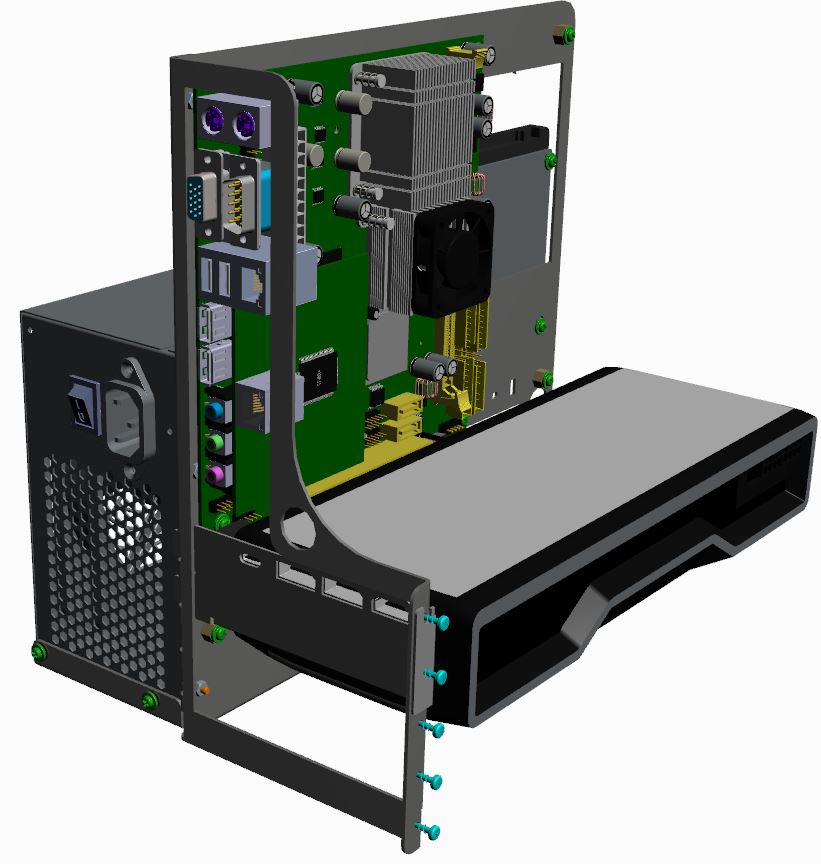

P-CASE 1
- Compact design - Wall mounting
- Most often chosen to be placed in furniture
P-CASE 2 mATX
- Test bench - Compact size
- PSU in 2 way to mount
P-CASE 3 mATX
- Test bench - Compact size
- one way to assembly PSU
P-CASE 4
- Case made of 2 different parts
- Minimum possible thickness

 P-CASE 1 P-CASE 2 mATXP-CASE 3 mATX P-CASE 4
Material
Steel DX51D+Z 1,5 [mm]  Steel DX51D+Z 1,5 [mm]Steel DX51D+Z 1,5 [mm]  Steel DX51D+Z 1,5 [mm]
Motherboard supportATX, micro-ATX, mini-ITX  micro-ATX, mini-ITXmicro-ATX, mini-ITX ATX, micro-ATX, mini-ITX
Socket HDD 3,5"1 11 1
Socket SSD 2,5"2 22 2
Expansion slots7 55 7
FDD support- -- +
CD support- -- +
Cooling support2 x FAN 120 [mm] / AIO 1 x FAN 120 [mm] / AIO1x FAN 120 [mm] / AIO -
Cooler support240 [mm] 240 [mm]240 [mm] -
PSU position / PSU standardHorizontal / ATX Horizontal / ATXHorizontal / ATX Horizontal / 2 x ATX / SFX
CPU cooling heightNo limit No limitNo limit No limit
Max GPU lenghtNo limit No limitNo limit No limit
Cable management90 [mm] -- -
Work positionVeritcal / ATX Horizontal / Vertical / ATXVeritcal / ATX Horizontal / ATX
Power buttonFront / Back FrontFront Front / Back
Weight2,6 [kg] 1,3 [kg]1,2 [kg] 3,4 [kg]
Dimensions28,3 x 23,7 x 32 [cm] 26,6 x 29,4 x 26 [cm]- 17,3 x 30 x 21,2 [cm]
26,3 x 31,5 x 12,3 [cm]

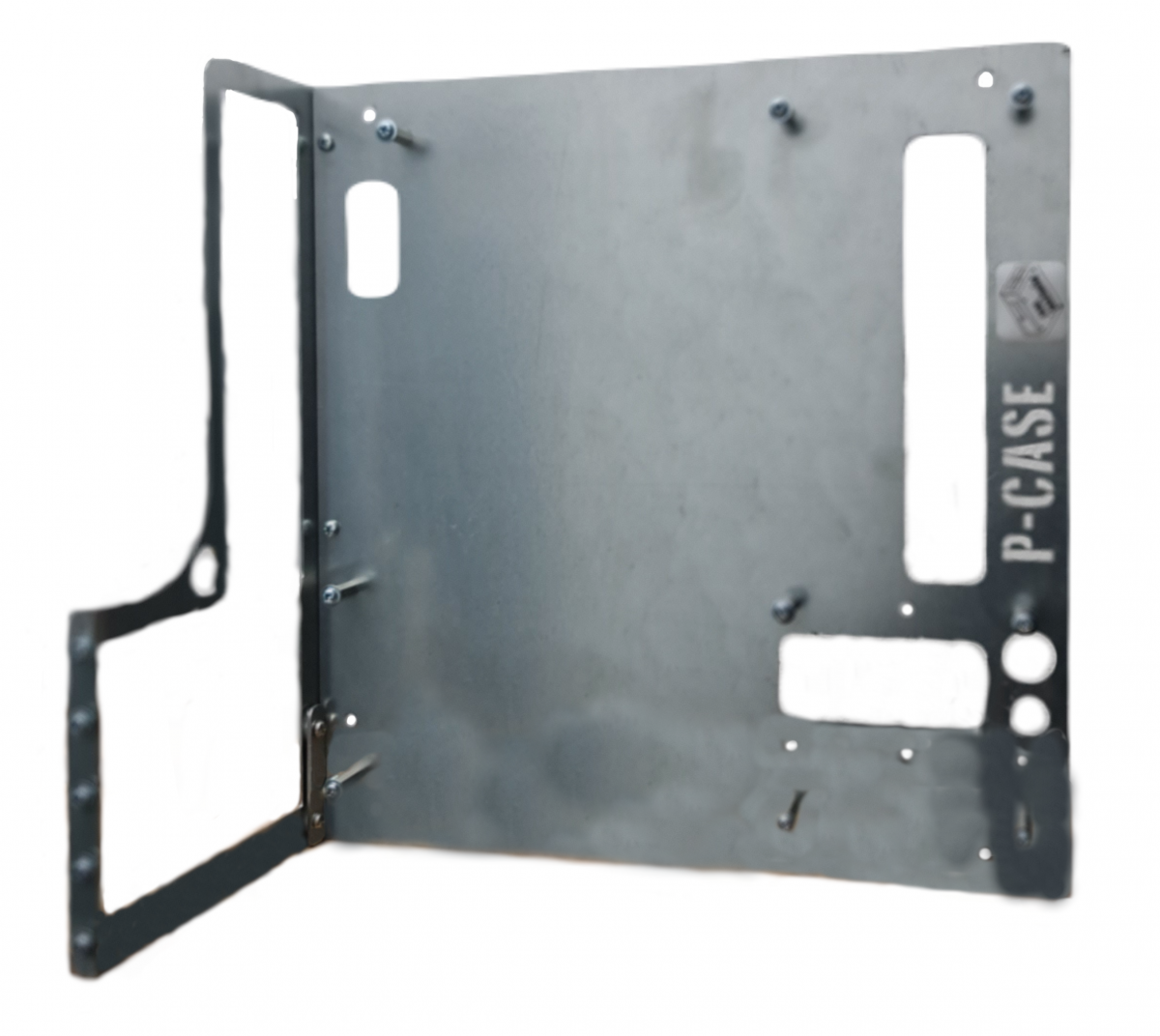

P-CASE 5 mATX
- Only motherboard and PCI-E to assembly

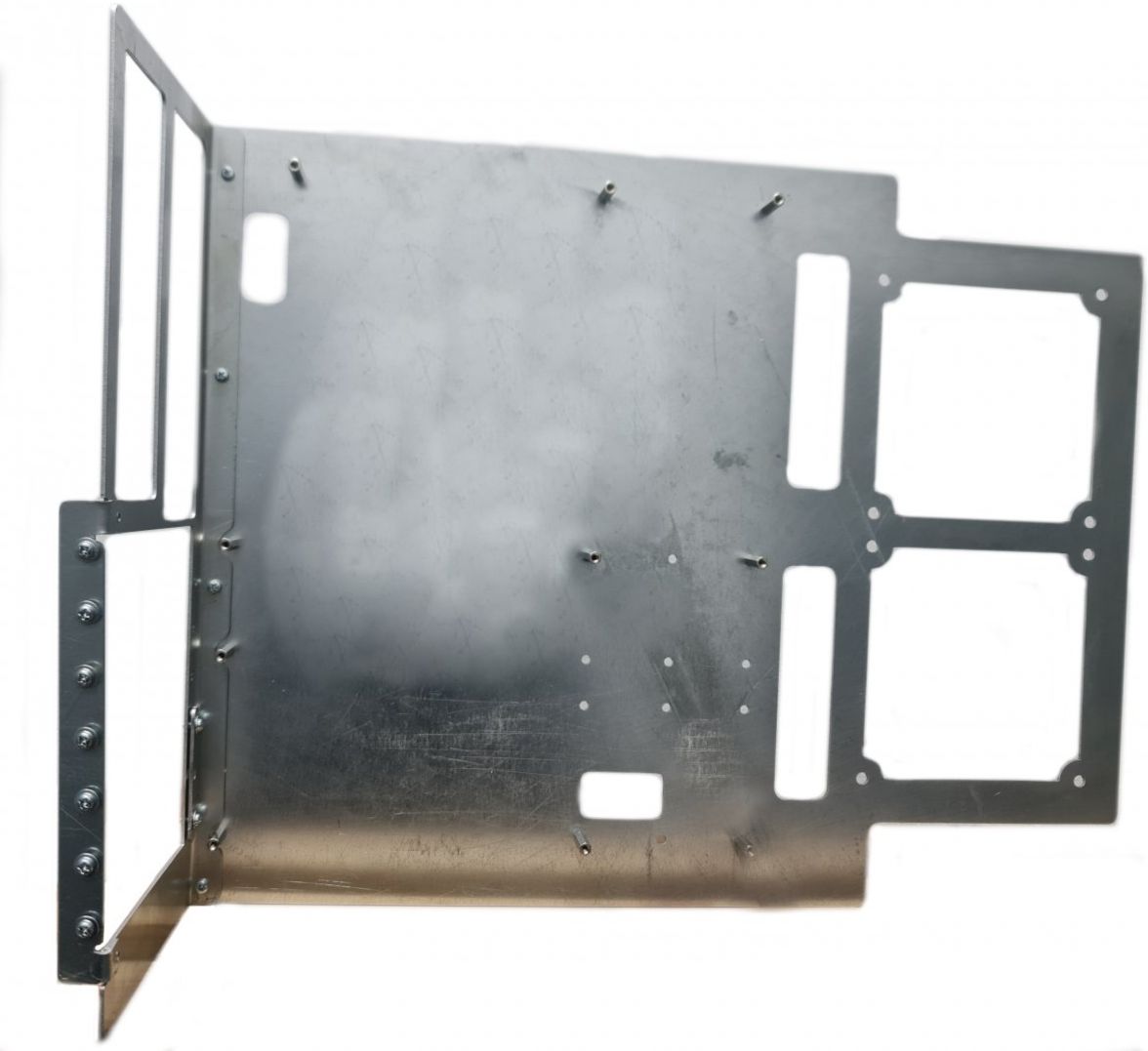

P-CASE 5 ATX
ATX motherboard and AIO 240 [mm]

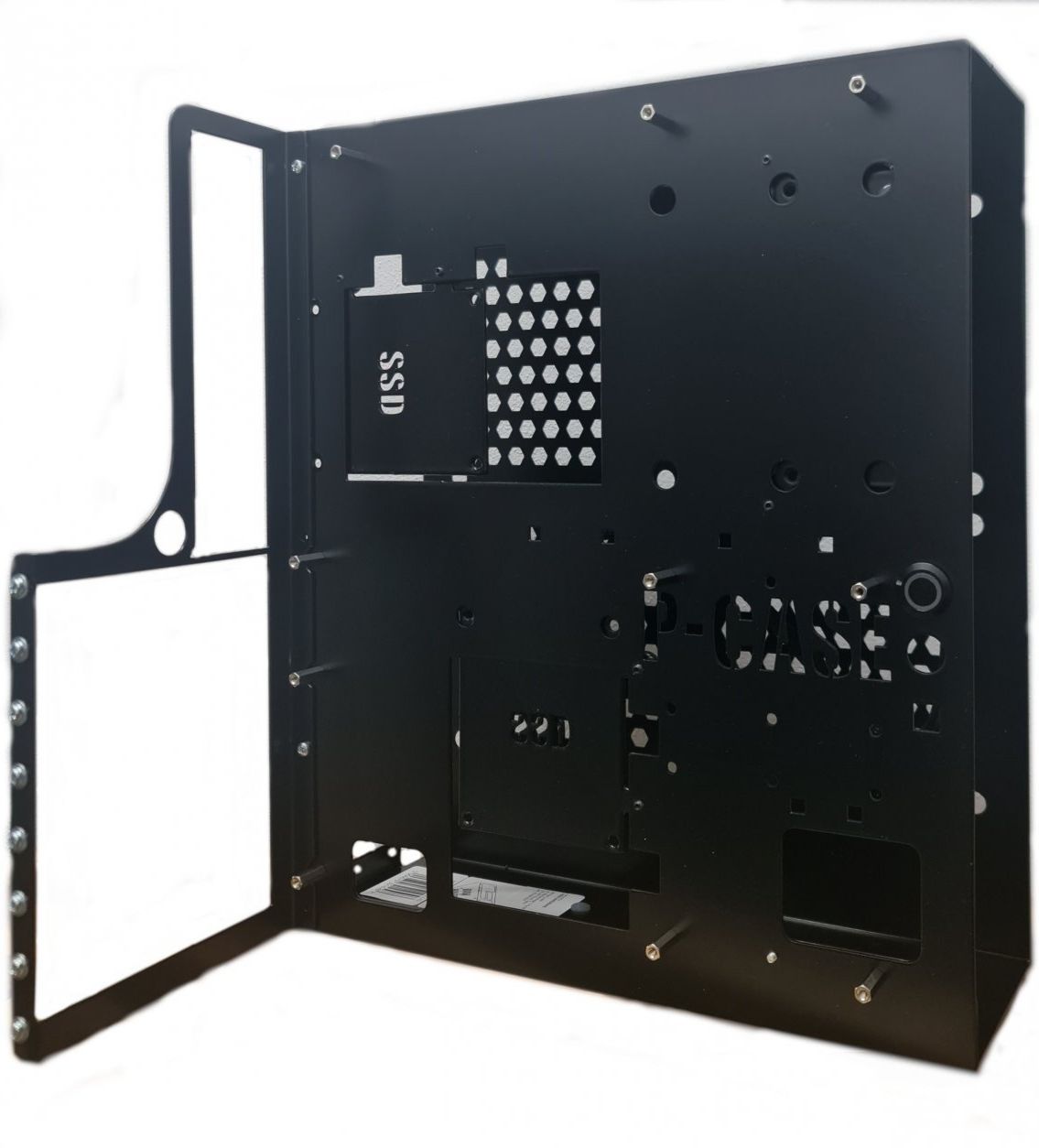

P-CASE 6 ATX
- 2 x AIO 240 [mm]
- SFX power supply

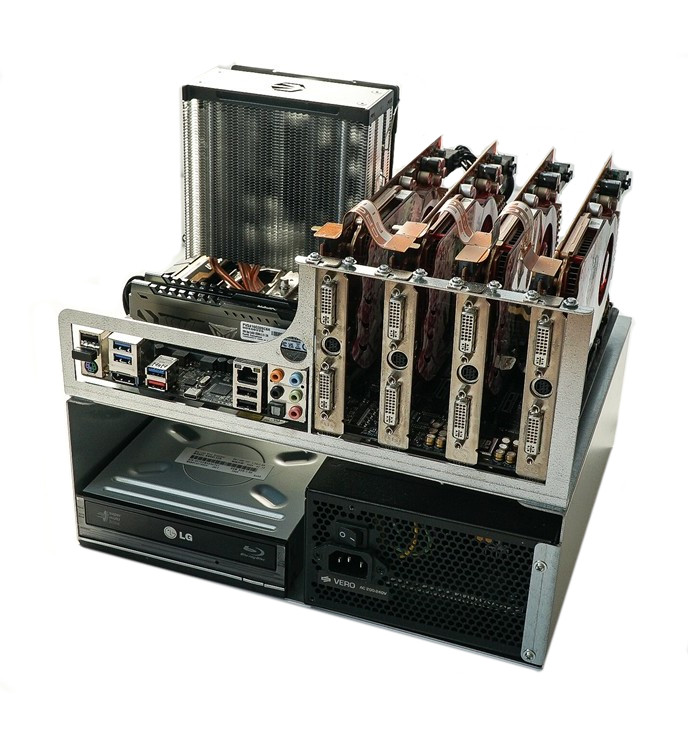

P-CASE 7 mATX
Perfect for test bench

 P-CASE 5 mATX P-CASE 5 ATXP-CASE 6 ATX P-CASE 7 mATX
Material
Steel DX51D+Z 1,5 [mm]  Steel DX51D+Z 1,5 [mm]Steel DX51D+Z 1,5 [mm] Steel DX51D+Z 1,5 [mm]
Motherboard supportmicro-ATX, mini-ITX  ATX, micro-ATX, mini-ITXATX, micro-ATX, mini-ITX micro-ATX, mini-ITX
Socket HDD 3,5"- -1 1
Socket SSD 2,5"- -2 1
Expansion slots5 77 5
FDD support- -- 1
CD support- -- 1
Cooling support- AIOAIO AIO
Cooler support- 240 [mm]2 x 240 [mm] 240 [mm]
PSU position / PSU standard- -Vertical / SFX Horizontal / ATX
CPU cooling heightNo limit No limitNo limit No limit
Max GPU lenghtNo limit No limitNo limit No limit
Cable management- -
90 [mm] 140 [mm]
Work positionVeritcal  / on wall Veritcal / on wallVertical Vertical / Horizontal
Power buttonFront / Back Front / BackFront / Back Front / Back
Weight0,9 [kg] 1,5 [kg]
2,7 [kg]
 3,0 [kg]
Dimensions25,5 x 26,5 x 13,3 [cm] 42 x 33 x 12 [cm]28,3 x 21,7 x 32 [cm] 31 x 28 x 27 [cm]

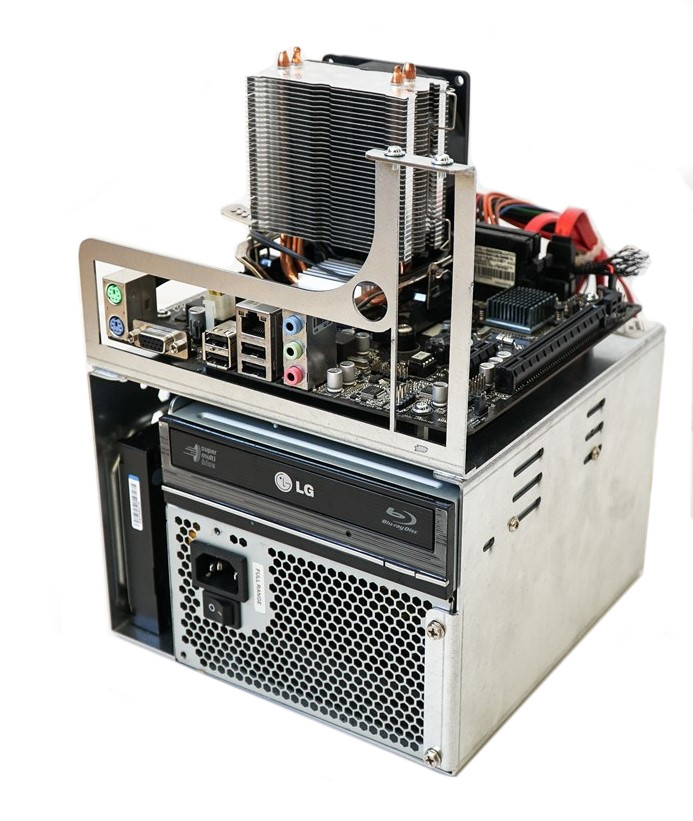

P-CASE 7 mITX
Mini test bench

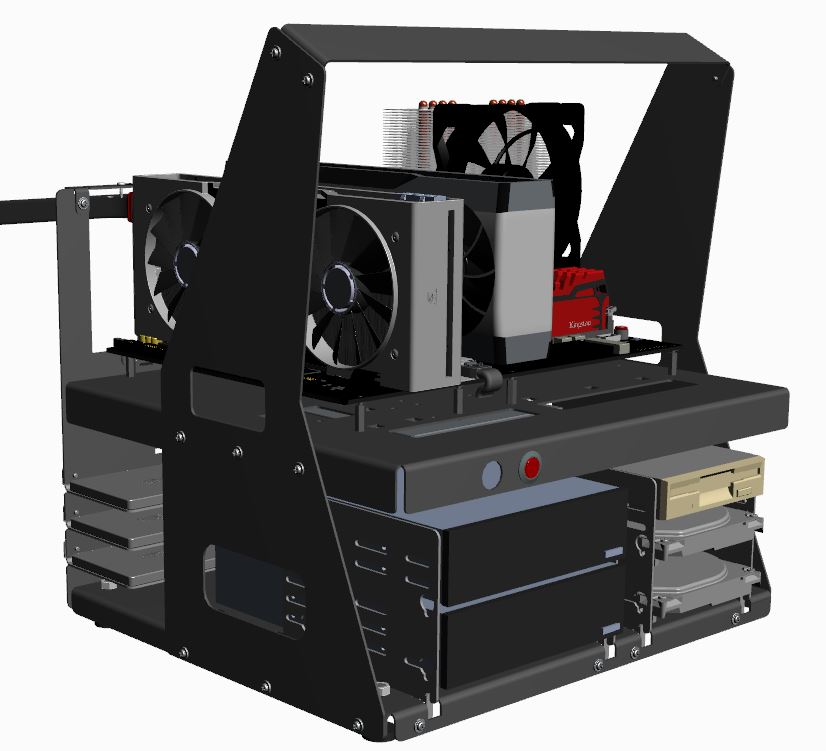

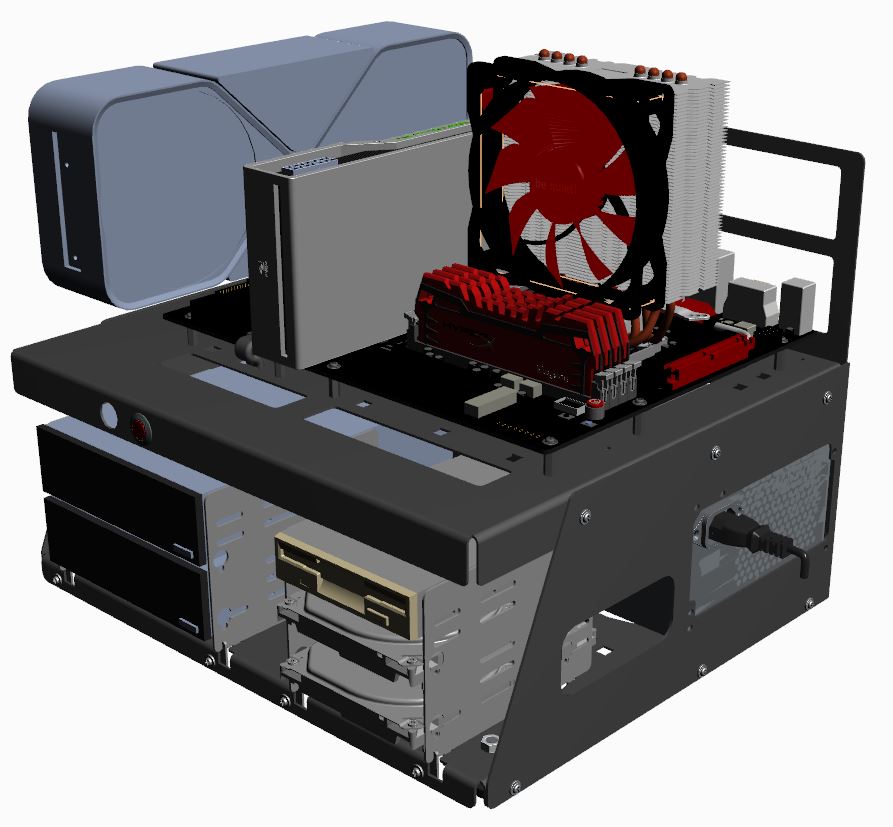

P-CASE 8 ATX
The best test bech ever made




 P-CASE 7 mITX P-CASE 8 ATX
Material
Steel DX51D+Z 1,5 [mm]  Steel DX51D+Z 1,5 [mm]
Motherboard supportmini-ITX  ATX, micro-ATX, mini-ITX
Socket HDD 3,5"1 2
Socket SSD 2,5"1 3
Expansion slots2 8
FDD support1 1
CD support1 2
Cooling supportAIO -
Cooler support120 [mm] -
PSU position / PSU standardHorizontal / ATX Horizontal / ATX
CPU cooling heightNo limit No limit
Max GPU lenghtNo limit No limit
Cable management140 [mm] 150 [mm]
Work positionHorizontal Horizontal
Power buttonFront / Back Front
Weight0,9 [kg] 5,8 [kg]
Dimensions [cm]  34 x 35 x 38 [cm]
  • The power supply separated by silicone spacers does not cause vibrations.
  • The mainboard is mounted on brass sleeves.
  • Separated directly by vibration damping pads.
  • The case has numerous holes for aesthetic arrangement of wires.
  • The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version

RAW
Not painted, no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.

RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
