F-CASE
Flat case series. Perfect for test bench and heavies GPU.

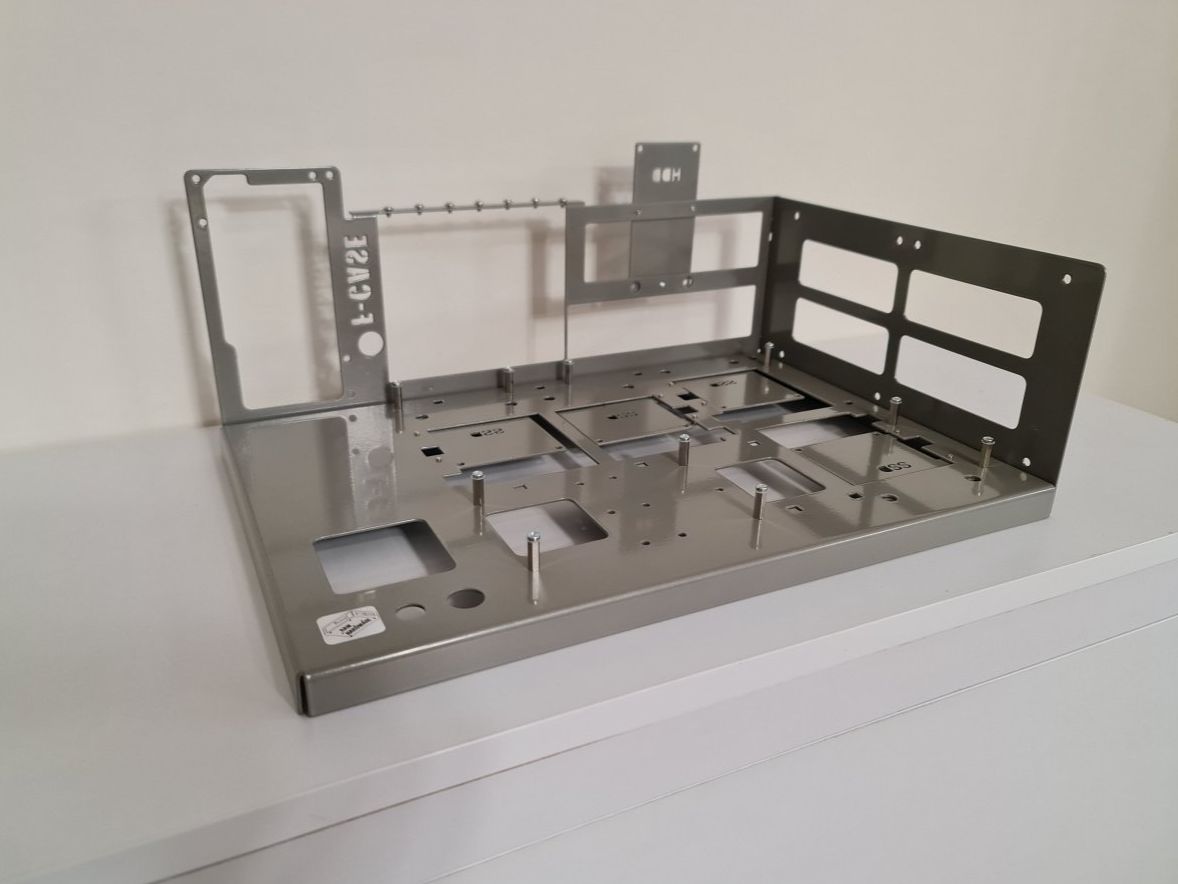

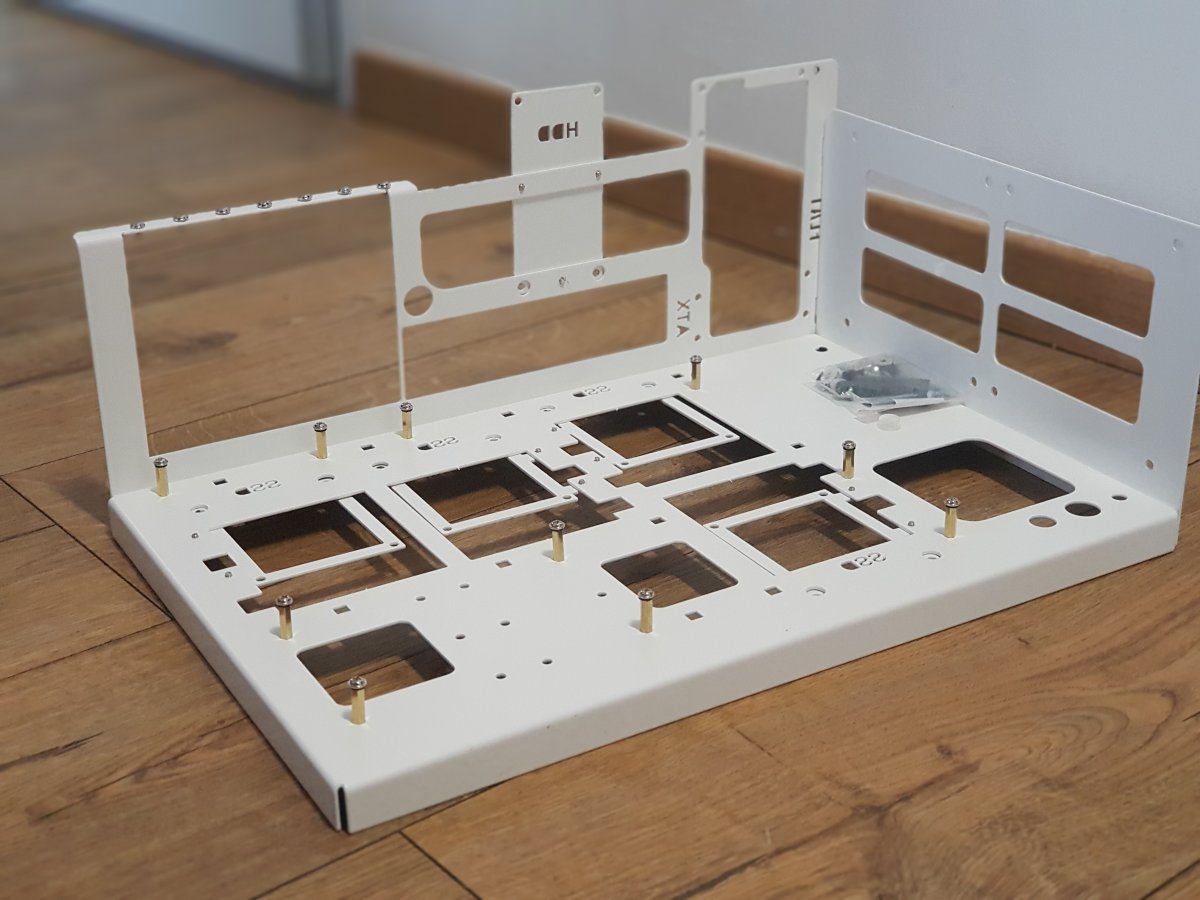

F-CASE 1
-Test bench
- Future design
- Wall mounting
- Power button on front or back

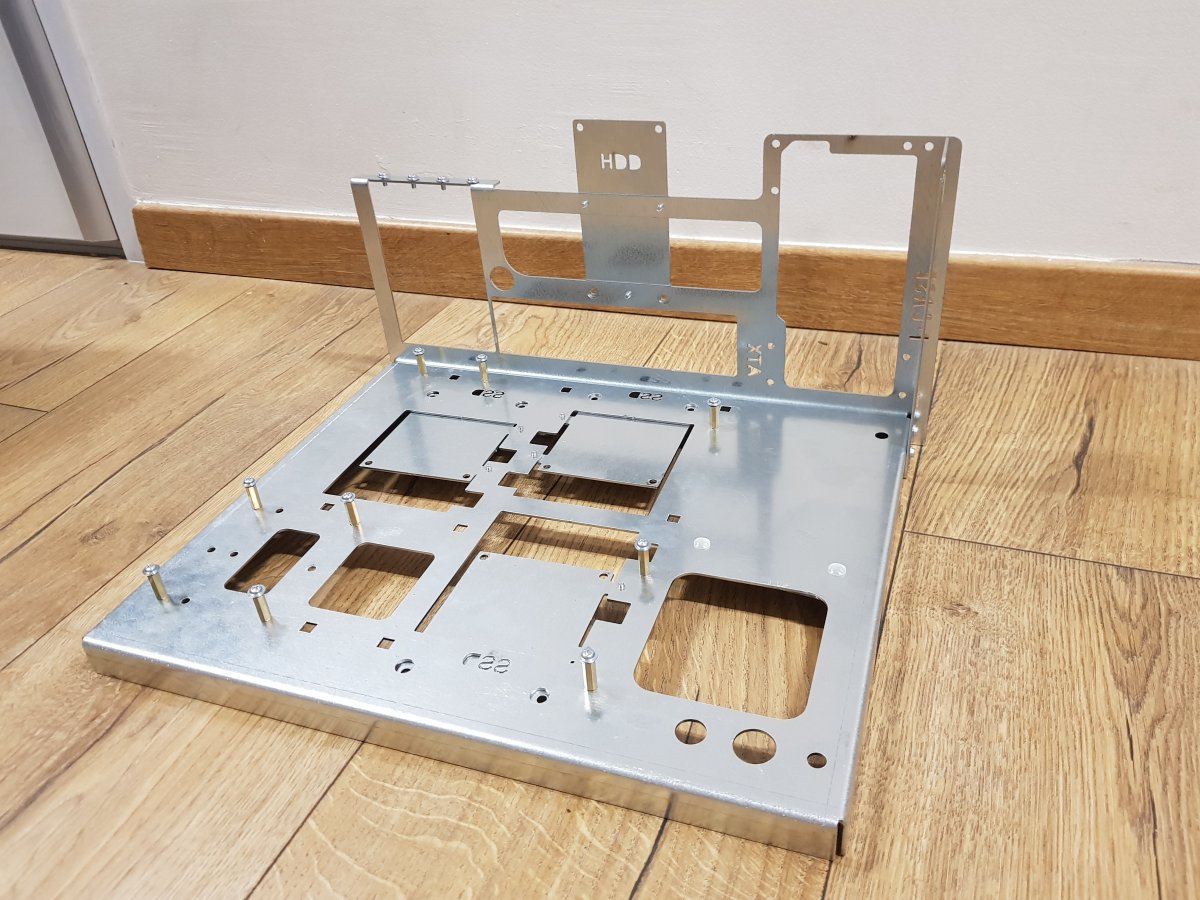

F-CASE 1 mATX
Smallest one- Simply shape
- Wall mounting
- Power button on front or back

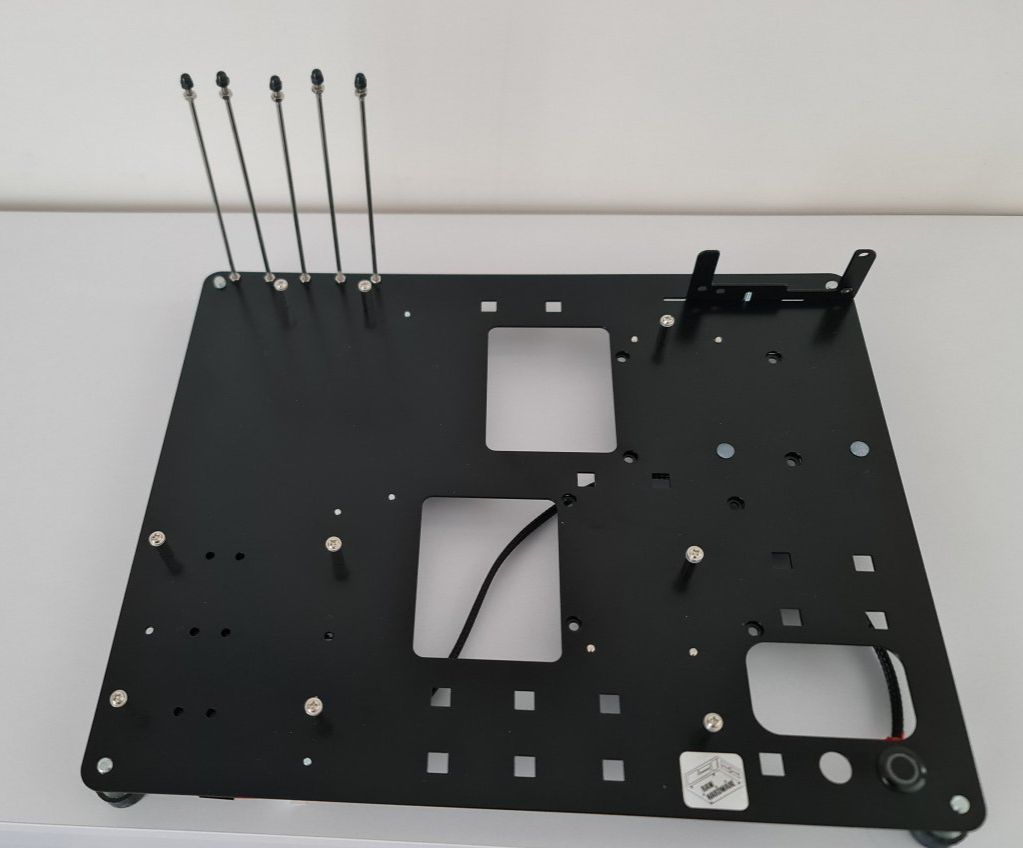

F-CASE 1 mATX v2
Many opportunities- Simply shape
- Good airflow
- Adjustable height on legs
F-CASE 2
PROFESSIONAL- Advance test bench - Space for 2 ATX PSU
- Installation of up to 14 expansions slots
- Installation of up to 14 expansions slots
| F-CASE 1 | F-CASE 1 mATX | F-CASE 1 mATX v2 | F-CASE 2 | |
|---|---|---|---|---|
| Material: | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] |
| Motherboard support | EATX, ATX, micro-ATX, mini-ITX | micro-ATX, mini-ITX | micro-ATX, mini-ITX | EATX, ATX, micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | 1 | 2 | 1 |
| Socket SSD 2,5" | 4 | 3 | 2 | 3 |
| Expansion slots | 7 | 4 | 5 | 14 |
| Cooling support | 2 x FAN 120 [mm] | - | - | - |
| Cooler support | 240 [mm] | - | - | - |
| PSU position / PSU standard | Veritcal / ATX | Veritcal / ATX | Veritcal / ATX | Horizontal / 2 x ATX |
| CPU cooling height | No limit |
No limit | No limit | No limit |
| Max GPU length | No limit | No limit | No limit | No limit |
| Cable management | 18 [mm] | 18 [mm] | - | - |
| Work position | Horizontal / Vertical on the wall | Horizontal / Vertical on the wall | Horizontal | Horizontal |
| Power button | Front and back | Front and back |
Front | Front |
| Weight | 1,9 [kg] | 1,6 [kg] | 1,6 [kg] | 3,5 [kg] |
| Dimensions | 28,8 x 41,3 x 17,5 [cm] | 34,1 x 28,8 x 17,6 [cm] | 28,5 x 35,5 x 2,3 [cm] | 67,6 x 33,3 x 12,6 [cm] |
F-CASE 3
Based on experience-Test bench
- Future design
- Wall mounting
- PSU on the left AIO on the right
F-CASE 4
For power machine- Wall mounting
- Glass on front
- Glass on front
- Support 2 x AIO 360

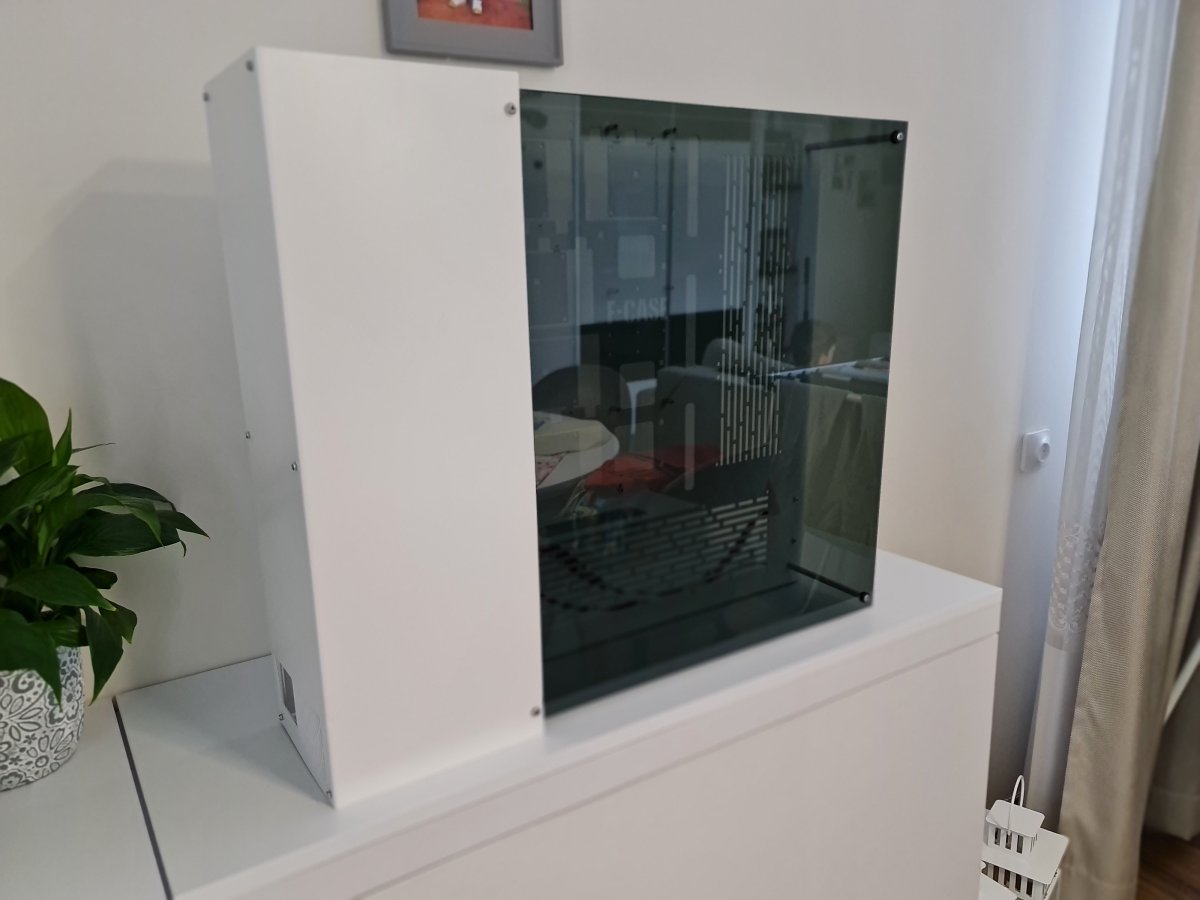

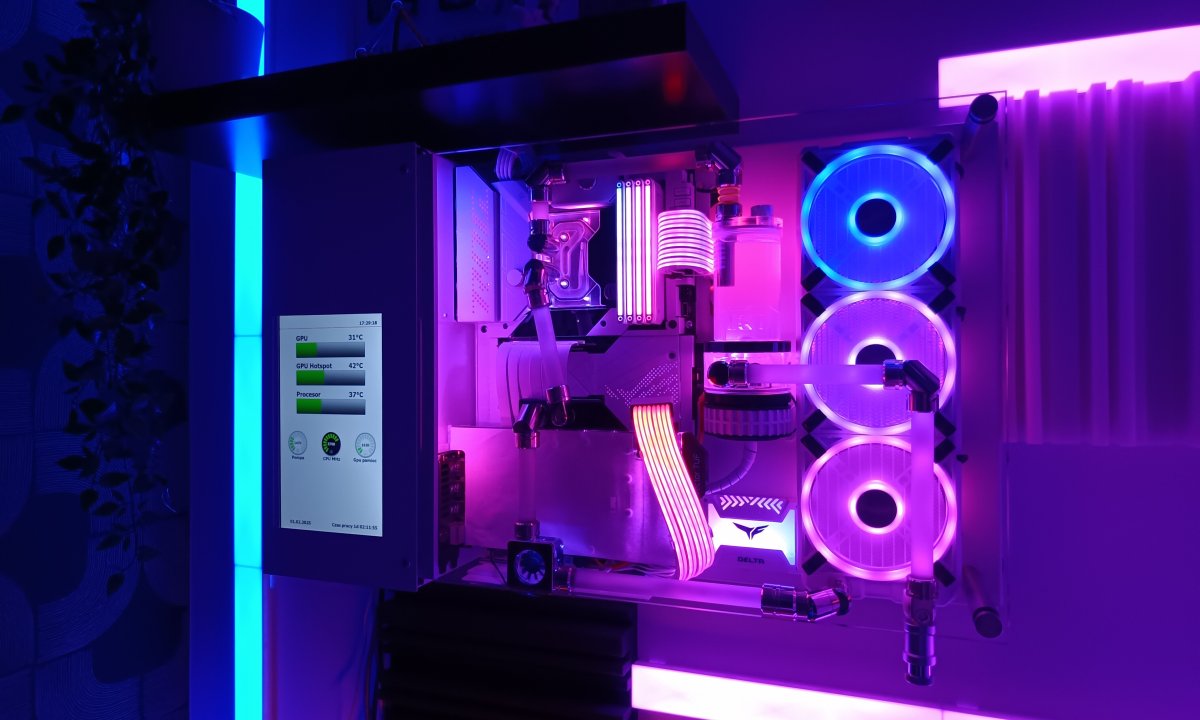

F-CASE 5
Light wall case- Wall mounting
- 1 x AIO 360 + punp
- 1 x AIO 360 + punp
- Glass on front

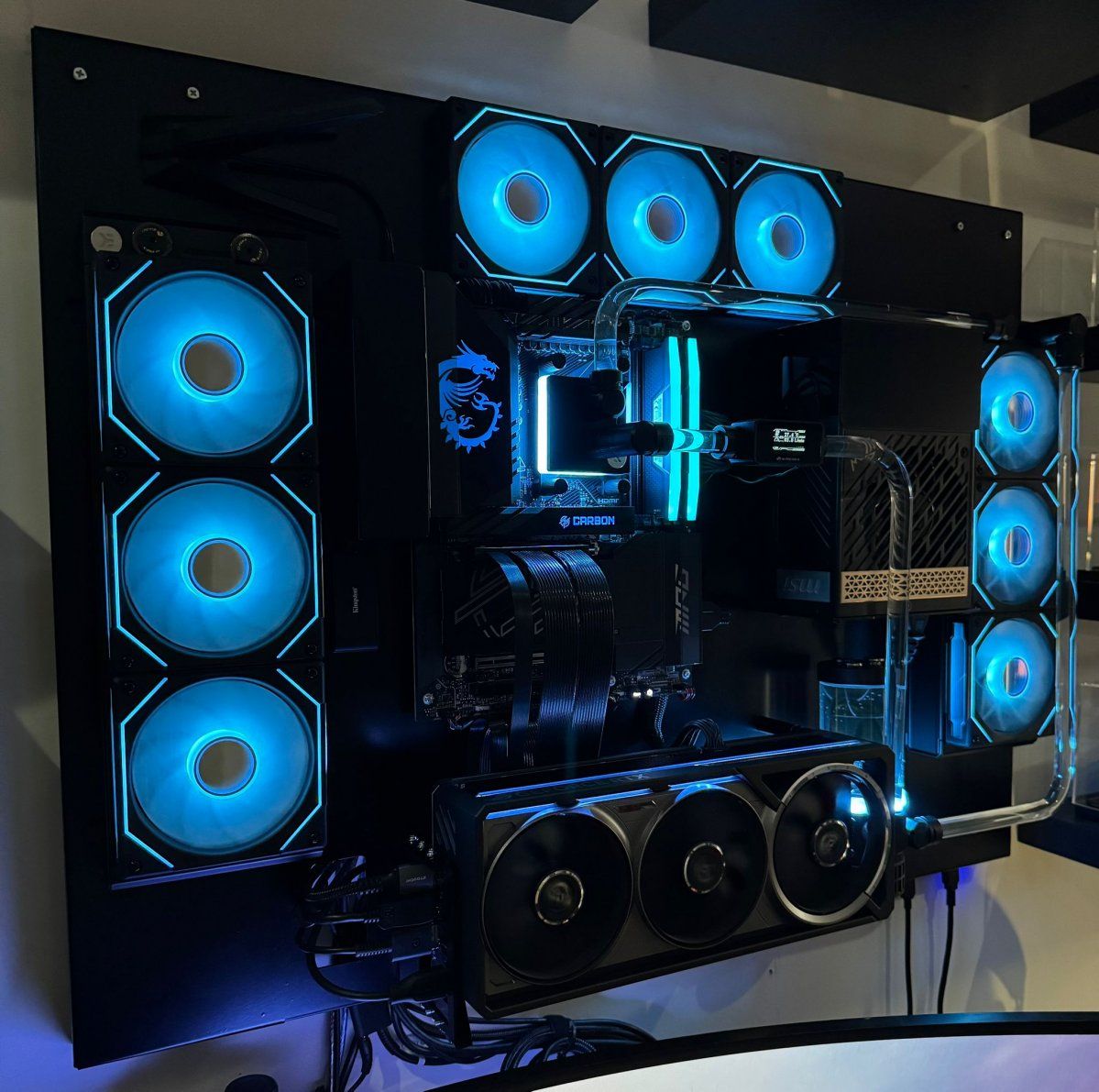

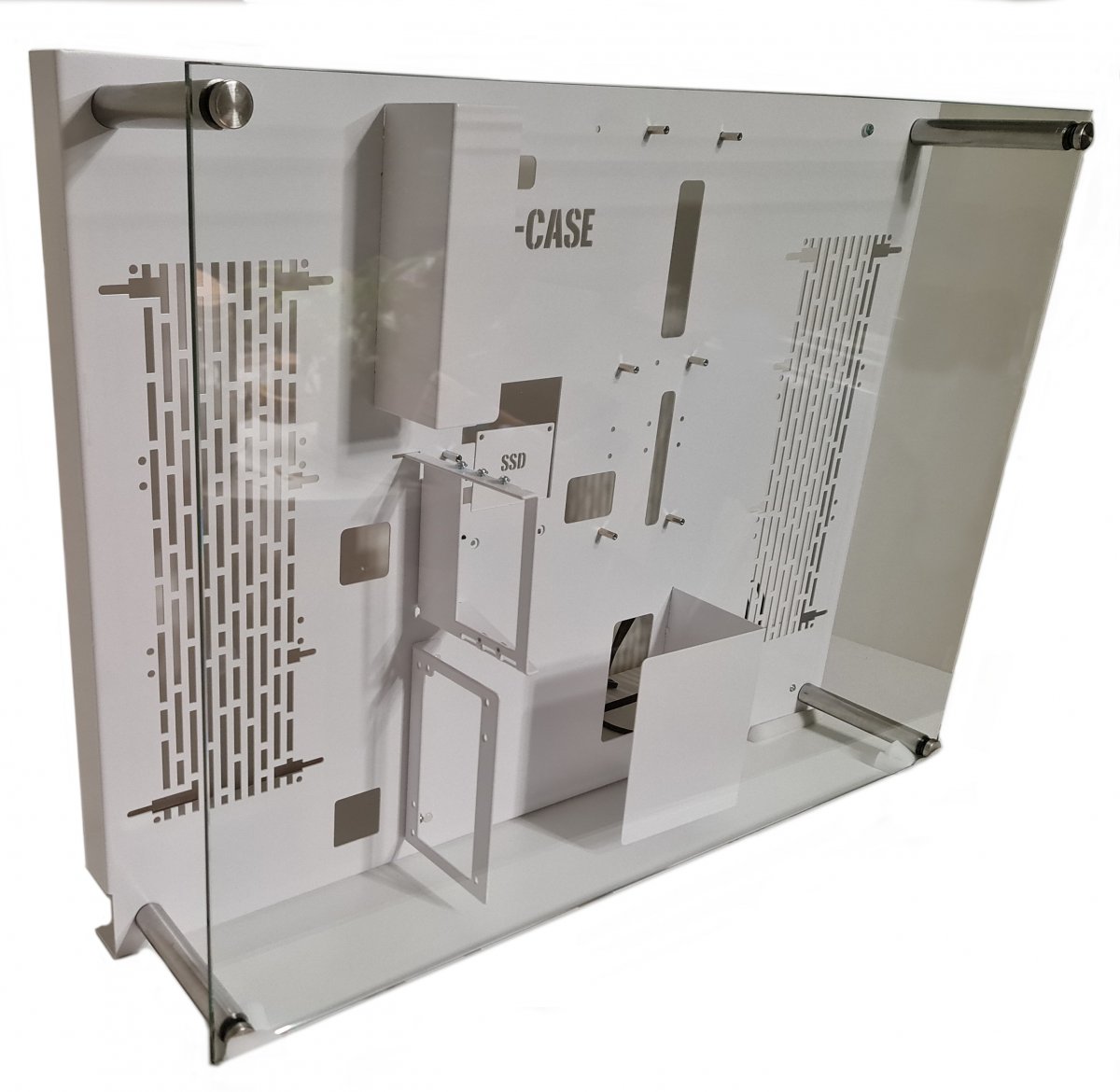

F-CASE 6
All behind glass- Wall mounting,
- 2 x AIO 360
- Great desing
| F-CASE 3 | F-CASE 4 | F-CASE 5 | F-CASE 6 | |
|---|---|---|---|---|
| Material: | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | - | 1 | - |
| Socket SSD 2,5" | 4 | 5 | 3 | 1 |
| Expansion slots | 7 | 7 | 7 | - |
| Cooling support | 2 x FAN 120 [mm] | 1 x FAN 120 [mm] | 2 x FAN 120 [mm] | 2 x AIO |
| Cooler support | 240 [mm] | 2 x 360 [mm] | 1 x 360 [mm] | 2 x 360 [mm] |
| PSU position / PSU standard | Vertical / ATX | Horizontal / ATX | Veritcal / ATX / Position regulation | Horizontal / ATX |
| CPU cooling height | No limit |
124 [mm] | 124 [mm] | 120 [mm] |
| Max GPU length | No limit | 305 [mm] | 305 [mm] | 305 [mm] |
| Cable management | 18 [mm] | 36 [mm] | 36 [mm] | 36 [mm] |
| Work position | Horizontal / Vertical on the wall | Horizontal / Vertical on the wall | Horizontal / Vertical on the wall | Horizontal / Vertical on the wall |
| Power button | Front and back | Side plate |
Side plate | Bottom |
| Weight | 1,9 [kg] | 10,3 [kg] | 10,3 [kg] | 11 [kg] |
| Dimensions | 28,8 x 41,3 x 17,1 [cm] | 67,4 x 57,1 x 16,4 [cm] | 70 x 43,2 x 16,8 [cm] | 73 x 55 x 16,4 [cm] |

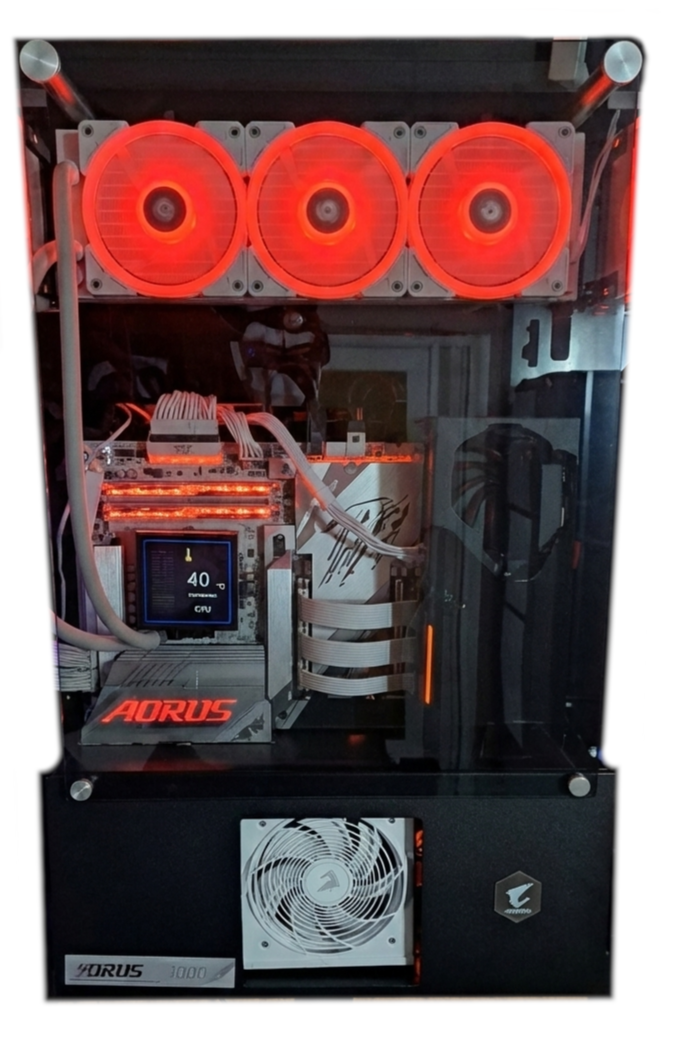

P-CASE 7
- Wall mounting Vertical
- 1 x AIO 360 + punp
- Glass on front
- 1 x AIO 360 + punp
- Glass on front
| F-CASE 7 | ||||
|---|---|---|---|---|
| Material | Steel DX51D+Z 1,5 [mm] | |||
| Motherboard support | ATX, micro-ATX, mini-ITX | |||
| Socket HDD 3,5" | 1 | |||
| Socket SSD 2,5" | 3 | |||
| Expansion slots | 7 | |||
| Cooling support | 2 x FAN 120 [mm] | |||
| Cooler support | 1 x AIO 360 [mm] | |||
| PSU position / PSU standard | Veritcal / ATX / Position regulation | |||
| CPU cooling height | 124 [mm] | |||
| Max GPU lenght | 305 [mm] | |||
| Cable management | 36 [mm] | |||
| Work position | Horizontal / Vertical on the wall | |||
| Power button | Buttom side | |||
| Weight | 10,3 [kg] | |||
| Dimensions | 70 x 43,2 x 16,8 [cm] |
- The power supply separated by silicone spacers does not cause vibrations.

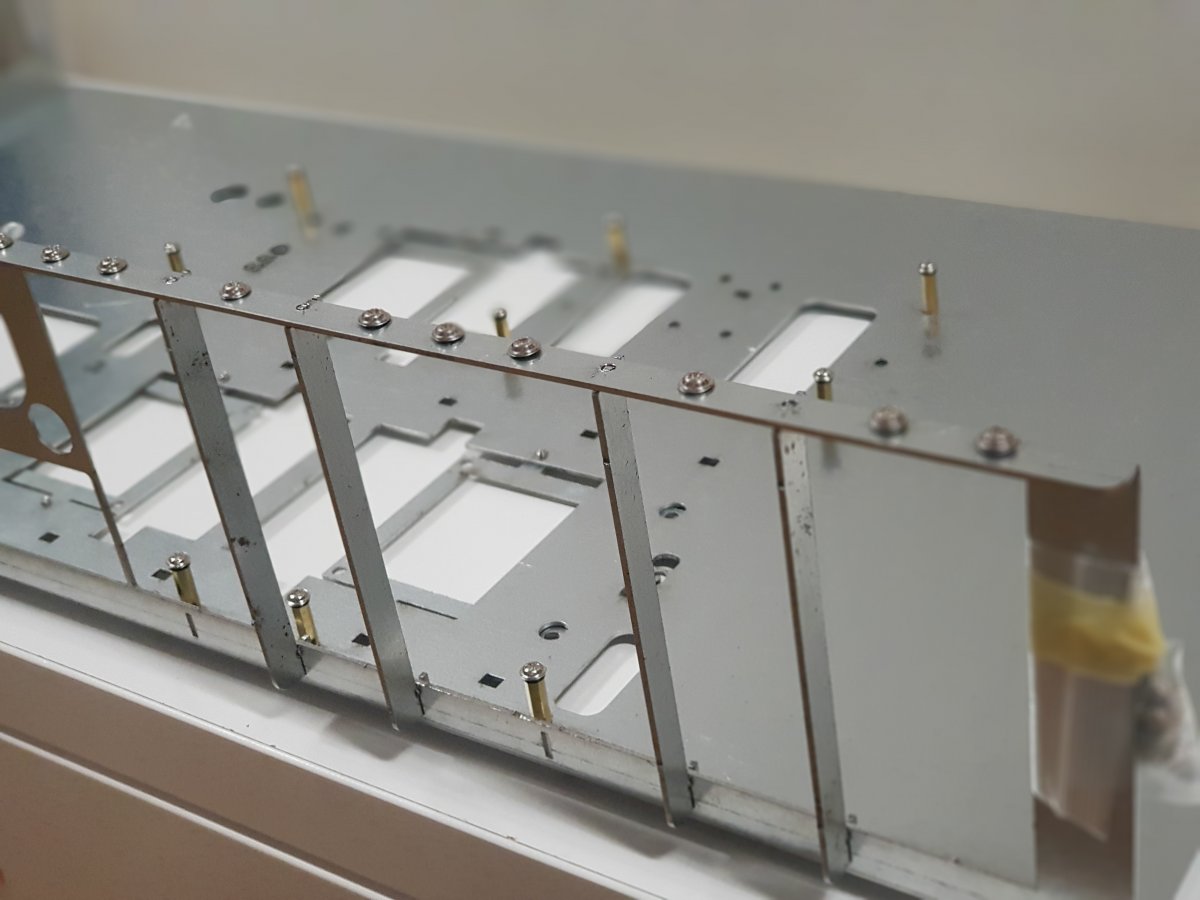

- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version
RAW
Not painted, no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.
RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
