M-CASE
Great design. Perfect for geeks.
Multiple configurations
M-CASE 1
Got everything You needSupport cooler 240 [mm]
M-CASE 1 LONG 360 or 420
When you require moreSupport cooler 360 [mm] / 420 [mm]
M-CASE 1 mATX
Little perfecionUp to 3 x SSD drive and 1 x HDD
Support cooler 240 [mm]

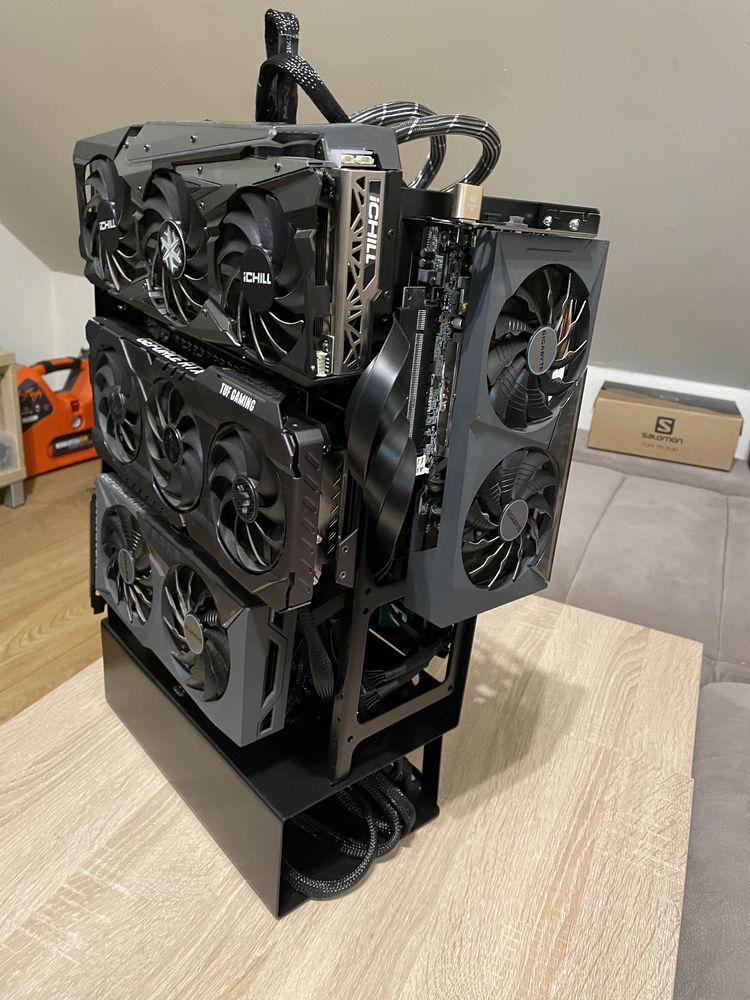

M-CASE 4xGPU
PROFESSIONALAssemble up to 4 x GPU outside.
Support cooler 360 [mm]
| M-CASE 1 | M-CASE 1 LONG | M-CASE 1 mATX | M-CASE 4xGPU | |
|---|---|---|---|---|
| Material | Steel DX51D+Z 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DC01 1,5 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | micro-ATX, mini-ITX | E-ATX, ATX, micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | - | 1 | 0-1 |
| Socket SSD 2,5" | 4 | 4 | 3 | 3 |
| Expansion slots | 7 | 7 | 5 | 7 |
| Cooling support | 2 x FAN 120 [mm] / AIO | 3 x FAN 120 [mm] / AIO | 2 x FAN 120 [mm] / AIO | 3 x FAN 120 [mm] / 2 x AIO |
| Cooler support | 240 [mm] | 360 [mm] | 240 [mm] | 360 [mm] |
| PSU position / PSU standard | Horizontal / ATX | Horizontal / ATX | Horizontal / ATX | Horizontal / 2 x ATX / SFX |
| CPU cooling height | No limit | No limit | No limit | No limit |
| Max GPU lenght | No limit | No limit | No limit | 4 x No limit |
| Cable management | 18 [mm] | 18 [mm] | 18 [mm] | - |
| Work position | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical | Vertical |
| Power button | Front panel | Front panel | Front panel | Front panel |
| Weight | 2,8 [kg] | 3,1 [kg] | 2,4 [kg] | 5 [kg] |
| Dimensions | 26,6 x 17,5 x 41,2 [cm] | 360 version: 26,6 x 17,5 x 41,2 [cm] 420 version: 26,6 x 17,5 x 49 [cm] | 26,6 x 17,5 x 35,2 [cm] | 50 x 37 x 22 [cm] |
M-CASE PURE
Clean sheet metal without holes
M-CASE 5 ATX
POWER CASESupport cooler 2 x 360 [mm]
Great airflow
M-CASE 5 PRO ATX
Updated PRO caseFront panel with USB and audio
HDD socket
M-CASE 5 PRO E-ATX
Special version for E-ATXCase for special use
| M-CASE PURE | M-CASE 5 | M-CASE 5 PRO ATX | M-CASE 5 PRO E-ATX | |
|---|---|---|---|---|
| Material | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | E-ATX 277 [mm], ATX, micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | - | 1 | 1 |
| Socket SSD 2,5" | 4 | 2 | 2 | 2 |
| Expansion slots | 7 | 7 | 7 | 7 |
| Cooling support | 2 x FAN 120 [mm] / 2 x AIO | 6 x FAN 120 [mm] / 2 x AIO | 6 x FAN 120 [mm] / 2 x AIO | 2 x AIO , PUMP |
| Cooler support | 240 [mm] | 2 x 360 [mm] | 2 x 360 [mm] | 2 x 360 [mm] / 1 x 360 [mm] + PUMP |
| PSU position / PSU standard | Horizontal / ATX | Horizontal / ATX | Horizontal / ATX | Horizontal / ATX |
| CPU cooling height | No limit | No limit | No limit | No limit |
| Max GPU lenght | No limit | No limit | No limit | No limit |
| Cable management | 18 [mm] | 18 [mm] | 18 [mm] | 18 [mm] |
| Work position | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical |
| Power button | None | 2 x Front panel | Front panel | Front panel |
| Weight | 2,8 [kg] | 3,1 [kg] | 3,1 [kg] | 3,2 [kg] |
| Dimensions | 26,6 x 17,5 x 41,2 [cm] | 28,2 x 18,6 x 42 [cm] | 28,2 x 18,6 x 42 [cm] | 31,2 x 18,6 x 42 [cm] |
M-CASE 2 mATX
Two steps case
SFX PSU
AIO 360
M-CASE 3
No overheat problem any more
Support big cooler 3 x 360 [mm]
Extra place for the pump
M-CASE 180
Motherboard upside down
Case for special use
M-CASE 6
Best test bench ever build
2 x cooler 420 [mm] !
Lot of cable management features
| M-CASE 2 mATX | M-CASE 3 | M-CASE 180 | M-CASE 6 | |
|---|---|---|---|---|
| Material | Steel DC01 1,5 [mm] | Steel DC01 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DC01 1,5 [mm] |
| Motherboard support | micro-ATX, mini-ITX | ATX , micro-ATX, mini-ITX | ATX , micro-ATX, mini-ITX | ATX , micro-ATX, mini-ITX |
| Socket HDD 3,5" | 1 | 1 | 1 | 1 |
| Socket SSD 2,5" | 3 | 2 | 3 | 2 |
| Expansion slots | 5 | 7 | 7 | 7 |
| Cooling support | 3x FAN 120 [mm] / AIO | 9 x FAN 120 [mm] / 3 x AIO | 2 x FAN 120 [mm] / AIO | 6 x FAN 140 [mm] / AIO |
| Cooler support | 360 [mm] | 3 x 360 [mm] or Alphacool XT45 | 240 [mm] | 2 x 420 [mm] |
| PSU position / PSU standard | Vertical / SFX | Vertical / SFX | Horizontal / ATX | Horizontal / ATX |
| CPU cooling height | No limit | No limit | No limit | No limit |
| Max GPU lenght | No limit | 270 [mm] | No limit | No limit |
| Cable management | 18 [mm] | 18 [mm] | 18 [mm] | 18 [mm] |
| Work position | Horizontal / Vertical / On wall | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical |
| Power button | Front | Front | Front | Front |
| Weight | 3,9 [kg] | 4,3 [kg] | 2,8 [kg] | 3,6 [kg] |
| Dimensions | 18,5 x 26,9 x 40,3 [cm] | 41 x 41 x 18 [cm] | 26,6 x 15,4 x 41,2 [cm] | 33 x 18 x 48 [cm] |
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version

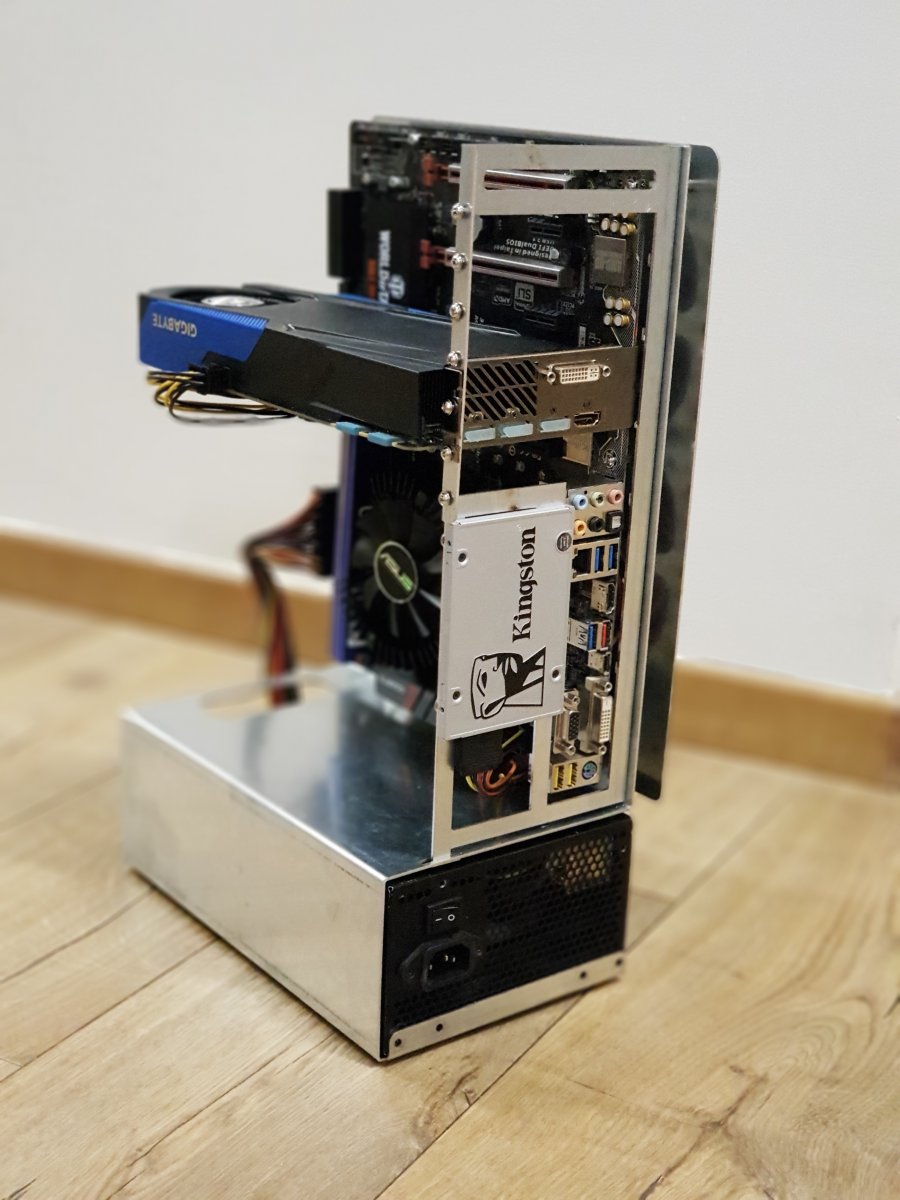

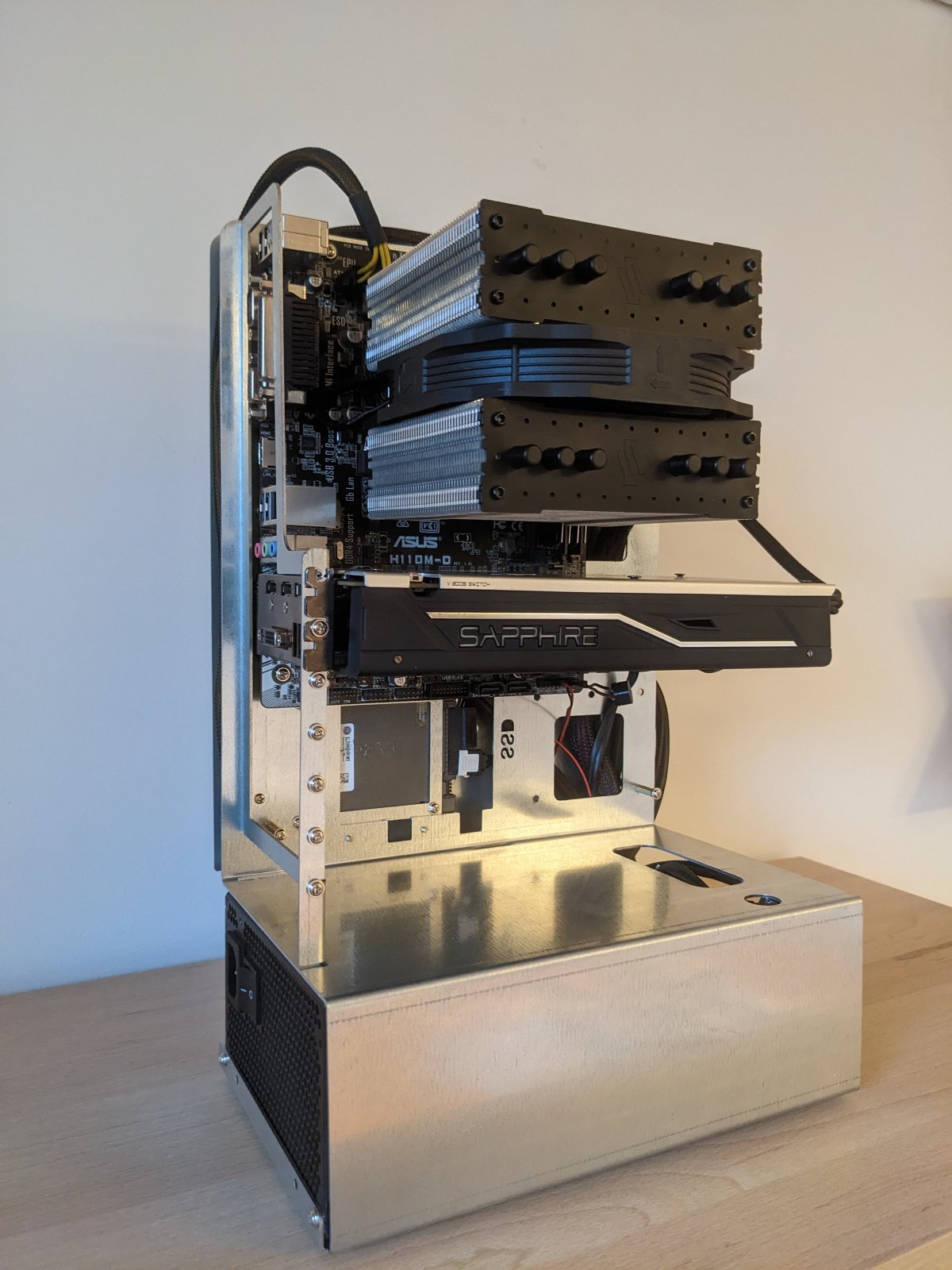

RAW
Not painted, no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.

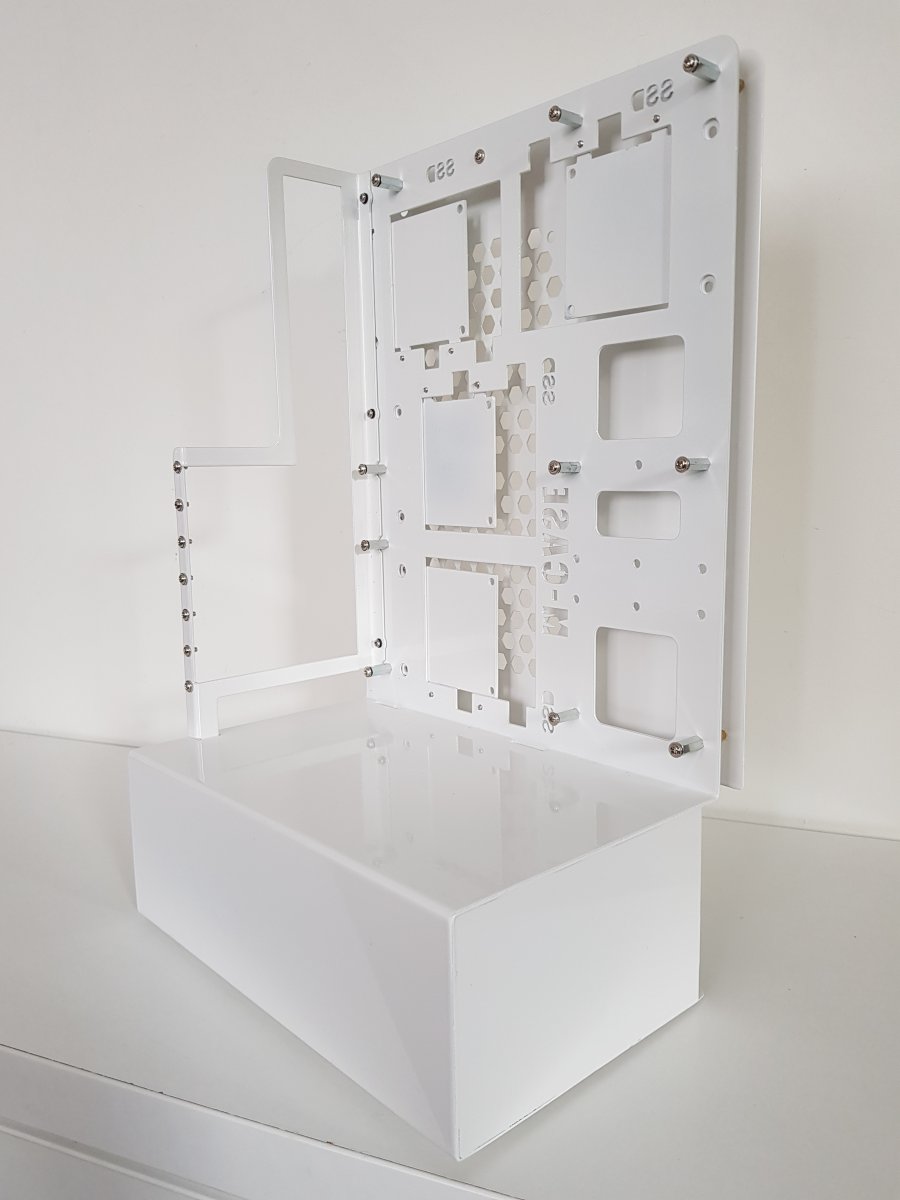

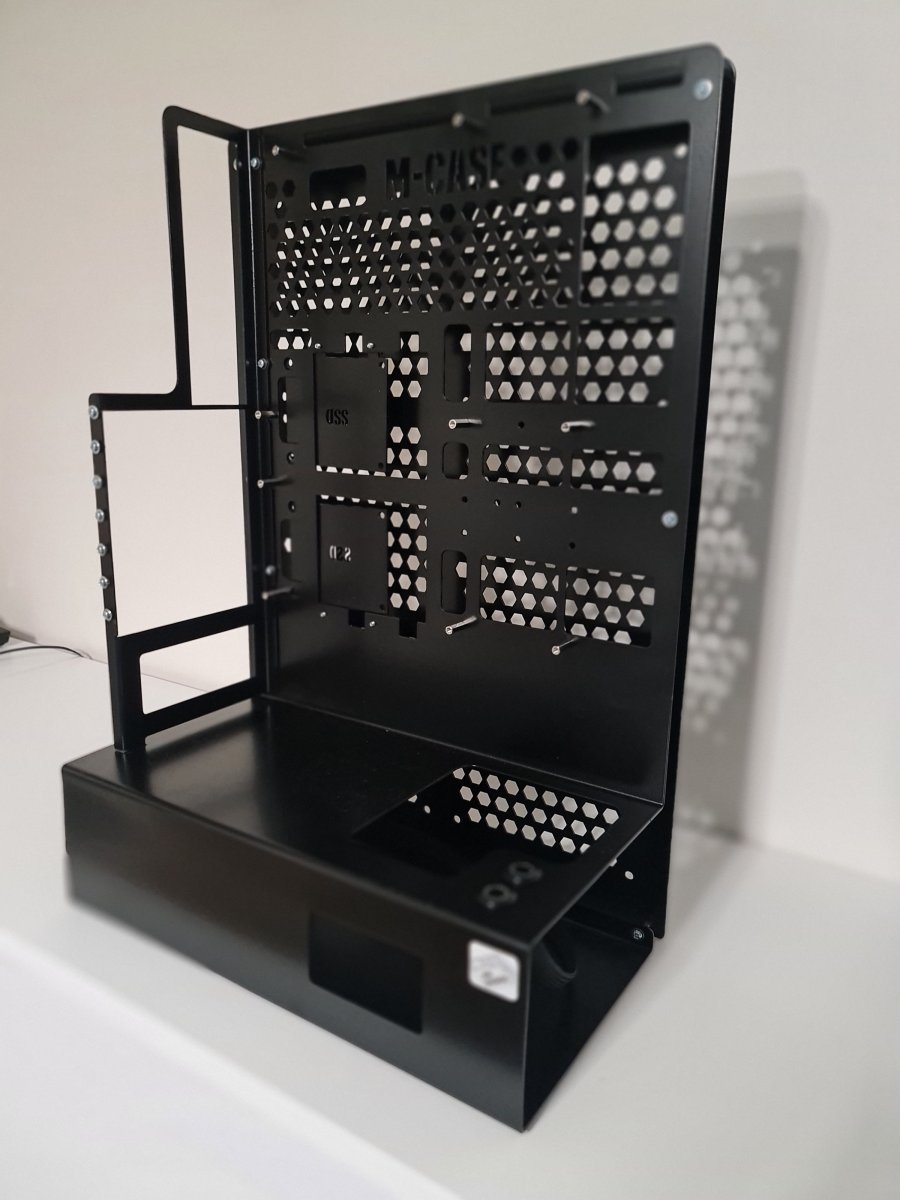

RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
