K-CASE

Special cases for AI or crypto

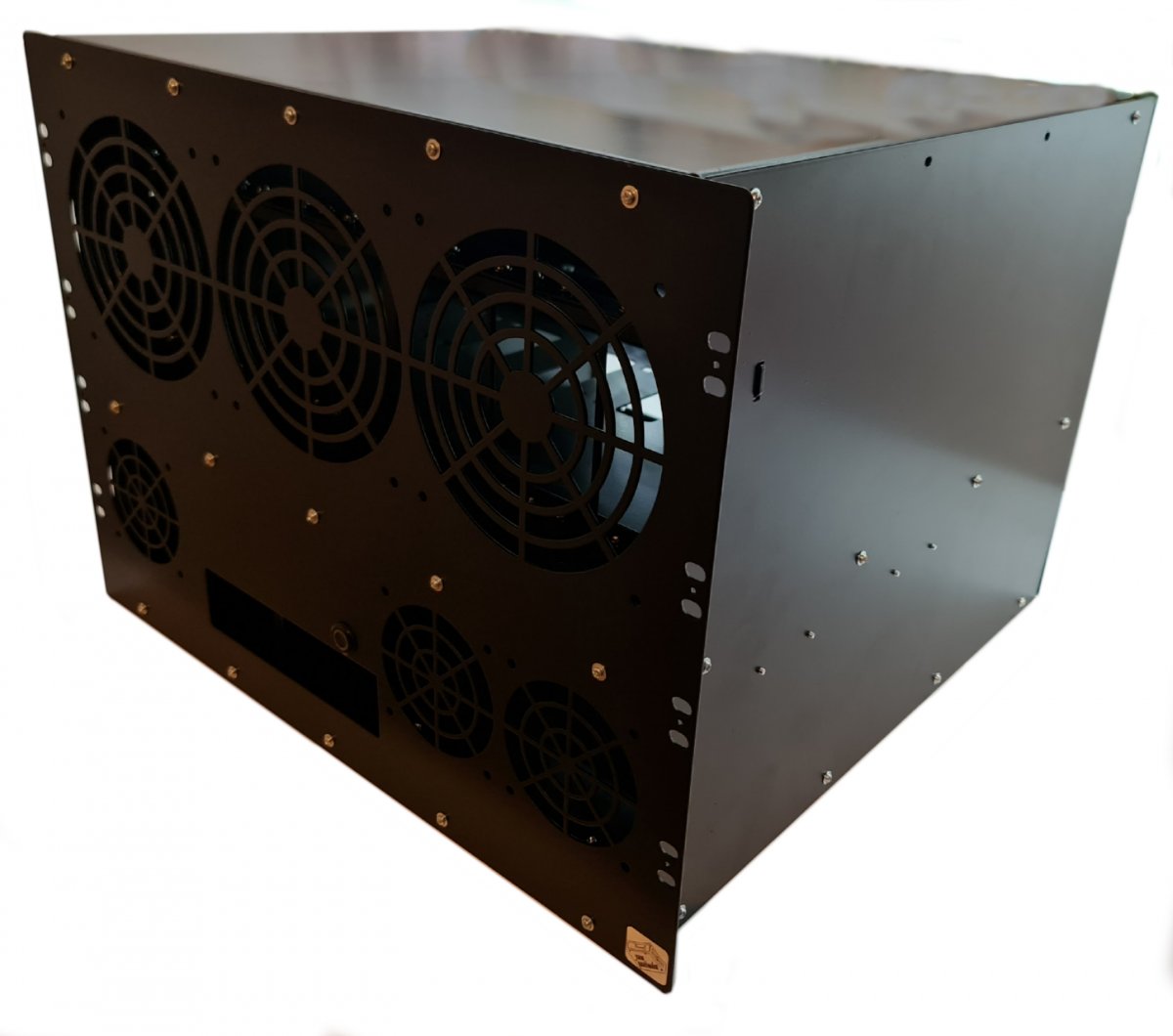

K-CASE 1
Design for rack 19" . 8 U size
- 6 x GPU
- FAN 6 x 140 + 3 x 80
- 2 x PSU ATX size
K-CASE 2
Bigger and more powerfull 14,5 U size
- 8 x GPU
- FAN 12 x 140 + 3 x 80
- 3 x PSU ATX size




K-CASE 1 K-CASE 2

Material:Steel DC01 1,5 [mm]  Steel DC01 1,5 [mm]

Motherboard support ATX, micro-ATX, mini-ITX  ATX, micro-ATX, mini-ITX

Socket HDD 3,5"- -

Socket SSD 2,5"2 -

Expansion slots- -

Cooling supportFAN 6x140 , 3x80 FAN 12x140 , 3x80

Cooler support  -
 -

PSU position / PSU standardHorizontal / 2 x ATX Horizontal / 3 x ATX

CPU cooling height  110 [mm]
 110 [mm]

Max GPU length  380 [mm] 380 [mm]

Cable management    110 [mm] 110 [mm]

Work position  Horizontal / Rack 19" Horizontal / Rack 19"

Power button    Front panel Front panel

Weight  15,6 [kg] 25,5 [kg]

Dimensions  48,3 x 46,2 x 35,6 [cm] 48,3 x 64 x 57,7 [cm]

  • The power supply separated by silicone spacers does not cause vibrations.
  • The mainboard is mounted on brass sleeves.
  • Separated directly by vibration damping pads.
  • The case has numerous holes for aesthetic arrangement of wires.
  • The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version

RAW
Not painted,
no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.


RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
